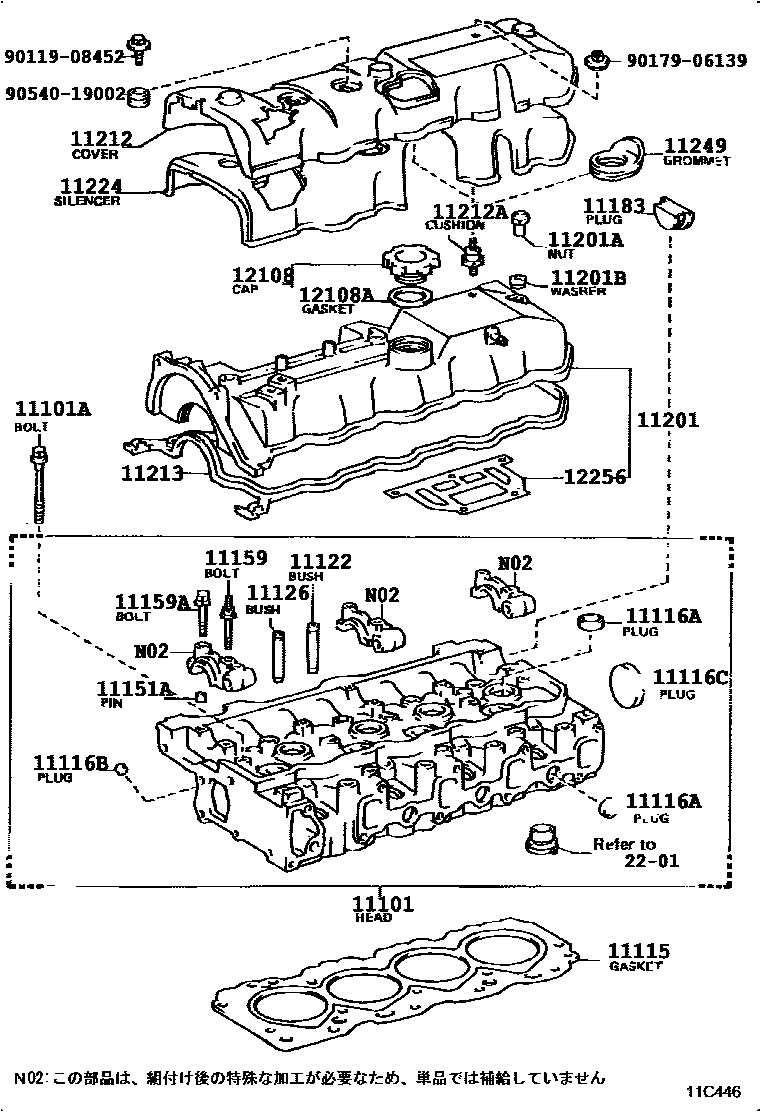

CYLINDER HEAD

0001 1 0003 1 0005 1

11101HEAD SUB-ASSY, CYLINDER

main11101-54050i2L..LH8#198708-198910

main11101-54110i2L..LH8#,9#198808-199206

sub11101-54111

main11101-54111i2L..LH8#,9#199206-199505

main11101-71010i2Y..YH81198708-199212

main11101-71011i2Y..YH81199212-199505

11101ABOLT(FOR CYLINDER HEAD SET)

main90105-12056i2Y..YH81198708-199505

main90910-02060i2L..LH8#198708-198807

sub90910-02090

main90910-02080i2L..LH80198808-199505

main90910-02081i2L..LH80198808-199505

main90910-02090i2L..LH8#198807-198910

11115GASKET, CYLINDER HEAD

main11115-54020i2L..LH8#198708-198910

sub11115-54021

main11115-54080-B0i2L..LH80198808-198908

MARK B

sub11115-54081

main11115-54080-D0i2L..LH80198808-198908

MARK D

sub11115-54081

main11115-54080-F0i2L..LH80198808-198908

MARK F

sub11115-54081

main11115-54081-B0i2L..LH80198908-199111

MARK B

sub11115-54082

main11115-54081-D0i2L..LH80198908-199111

MARK D

sub11115-54082

main11115-54081-F0i2L..LH80198908-199111

MARK F

sub11115-54082

main11115-54082-B0i2L..LH8#,9#199111-199204

MARK B

sub11115-54083

main11115-54082-D0i2L..LH8#,9#199111-199204

MARK D

sub11115-54083

main11115-54082-F0i2L..LH8#,9#199111-199204

MARK F

sub11115-54083

main11115-54083-B0i2L..LH8#,9#199204-199505

MARK B

sub11115-54084

main11115-54083-D0i2L..LH8#,9#199204-199505

MARK D

sub11115-54084

main11115-54083-F0i2L..LH8#,9#199204-199505

MARK F

sub11115-54084

main11115-73040i2Y..YH81198708-199308

sub11115-73041

main11115-73041i2Y..YH81199308-199505

11116APLUG, TIGHT, NO.1

main90331-08004i2L..LH80198808-198907

main96411-42500i2L..LH8#198708-198910

11116BPLUG, TIGHT, NO.2

main96411-41200i2L..LH85198708-198910

main96411-42500i2L..LH8#,9#198808-199505

main96411-62500i2L..LH8#,9#199305-199501

11116CPLUG, TIGHT, NO.3

main96411-43000i2L..LH8#,9#198808-199505

main96411-45000i2L..LH8#198708-198910

main96411-63000i2L..LH8#,9#199305-199501

11122BUSH, INTAKE VALVE GUIDE

main11122-54011i2L..LH8#198708-198910

main11122-54020i2L..LH8#,9#198808-199505

sub11122-17020

main11122-71020i2Y..YH81198708-199505

main11123-54011i2L..LH85198708-198910

main11123-54020i2L..LH80198808-199505

main11123-71020i2Y..YH81198708-199505

11126BUSH, EXHAUST VALVE GUIDE

main11122-54011i2L..LH85198708-198910

main11122-54020i2L..LH8#,9#198808-199505

sub11122-17020

main11123-54011i2L..LH85198708-198910

main11123-54020i2L..LH80198808-199505

main11126-71020i2Y..YH81198708-199505

main11127-71020i2Y..YH81198708-199505

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90253-11001i2L..LH8#198708-198910

main90253-11021i2L..LH80198808-199505

11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)

main90116-08137i2L..LH85198708-198910

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90105-08166i2L..LH80198808-199505

main90119-08191i2L..LH8#198708-198910

11183PLUG, SEMICIRCULAR

main11183-54011i2L..LH8#198708-198808

main11183-54011i2L..LH85198808-198910

main11183-54020i2L..LH80198808-199505

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-54080i2L..LH8#198801-198910

main11201-71011i2Y..YH81199208-199505

sub11201-71012

main11201-79035i2Y..YH81198708-199208

sub11201-71011

sub11213-71020

sub90210-09001

main11210-54030i2L..LH8#,9#198808-199203

sub11210-54031

main11210-54031i2L..LH8#,9#199203-199505

sub11210-54032

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main90176-08007i2Y..YH81198708-199505

main90176-08014i2L..LH8#198708-198910

main90179-06171i2L..LH80198808-199505

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-09001i2Y..YH81198708-199211

sub90210-09019

main90210-09019i2Y..YH81199211-199505

main90210-13001i2L..LH8#198708-198910

11212COVER, CYLINDER HEAD, NO.2

main11212-54020i2L..LH85198708-198910

main11212-54030i2L..LH8#,9#198808-199505

11212ACUSHION, CYLINDER HEAD COVER

main11228-54010i2L..LH8#198708-198910

11213GASKET, CYLINDER HEAD COVER

main11213-54030i2L..LH8#198708-198808

main11213-54030i2L..LH85198808-198910

main11213-54050i2L..LH80198808-199505

main11213-71020i2Y..YH81198708-199505

11224SILENCER, CYLINDER HEAD COVER

main11224-54020i2L..LH8#198708-198910

main11224-54030i2L..LH80198808-199505

11249GROMMET, CYLINDER HEAD COVER

main11249-54010i2L..LH8#198708-198910

main11249-54020i2L..LH80198808-199309

12108CAP SUB-ASSY, OIL FILLER

main12180-13030i2L..LH85198708-198910

sub12180-55010

main12180-61010i2Y..YH81198708-199003

sub12180-70020

main12180-70020i2L..LH80198808-199505

main12180-73010i2Y..YH81199011-199103

sub12180-73011

main12180-73011i2Y..YH81199103-199505

main12180-75010i2Y..YH81199003-199011

sub12180-73011

12108AGASKET(FOR OIL FILLER CAP)

main12195-70010i2L..LH8#198808-199505

main12195-71020i2Y..YH81198708-199003

main12195-73010i2Y..YH81199011-199505

main90430-37140i2L..LH85198708-198910

12256GASKET, VENTILATION BAFFLE

main12256-54020i2L..LH8#198708-198910

2201

9011908452

main90119-08452

9017906139

main90179-06139

9054019002

main90540-19002

27 parts on this diagram · 3 diagrams in section
