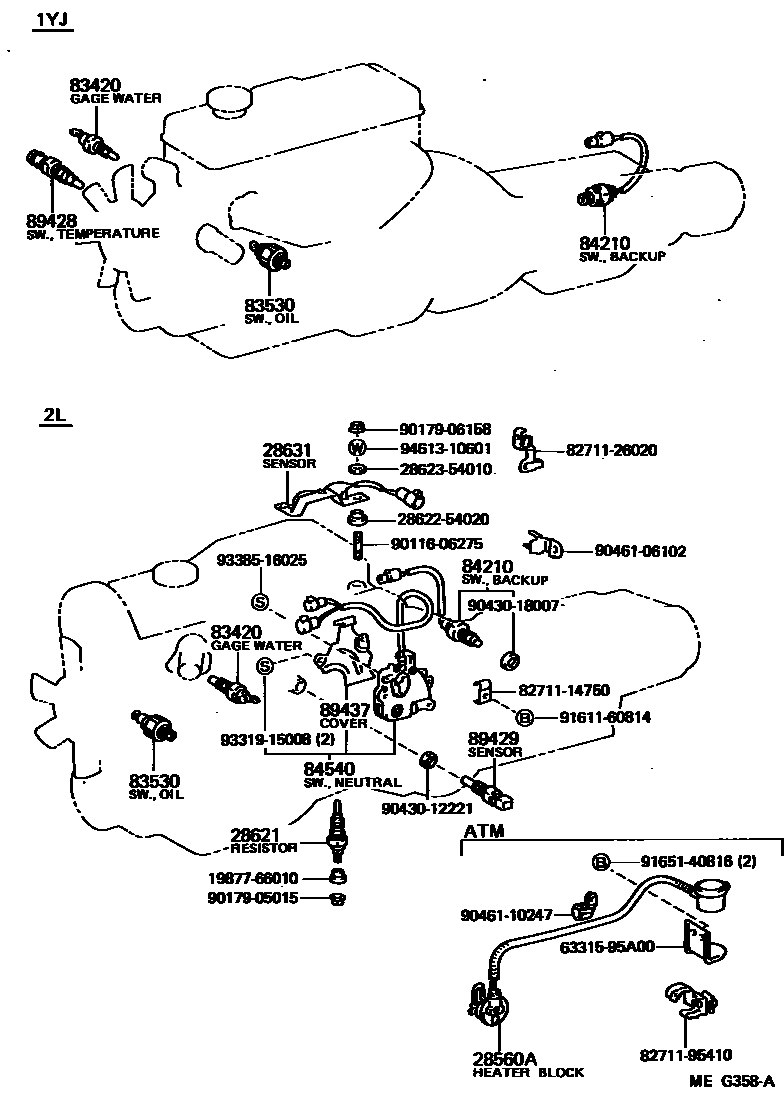

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

28560ABLOCK, HEATER

main28560-95A00i2L..LH80..4FC198508-198708

28621RESISTOR, GLOW PLUG

main28621-54031i2L..LH80198508-198708

28631SENSOR, GLOW PLUG CURRENT

main28631-54040i2L..LH80198508-198708

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iLH80,YH80198508-198708

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iYH80198508-198708

main83530-30060iLH80198508-198708

84210SWITCH ASSY, BACK-UP LAMP

main84210-26030iYH80198508-198708

main84210-60021iLH80..5F198508-198708

84540SWITCH ASSY, NEUTRAL START

main84540-26010iLH80..4FC198508-198708

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-26020iYH80198508-198708

89429SENSOR, OIL TEMPERATURE

main89422-30020iLH80198508-198708

89437COVER, SENSOR

main89437-26010iLH80..4FC198508-198708

1987766010

main19877-66010

2862254020INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-54020

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

6331595A00GARNISH, ROOF HEADLINING, REAR RH

main63315-95A00

8271114750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14750

8271126020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-26020

8271195410WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95410

9011606275

main90116-06275

9017905015

main90179-05015

9017906158

main90179-06158

9043012221

main90430-12221

9043018007

main90430-18007

9046106102

main90461-06102

9046110247

main90461-10247

9161160814

main91611-60814

9165140816

main91651-40816

9331915008

main93319-15008

9338516025

main93385-16025

9461310601

main94613-10601

29 parts on this diagram · 4 diagrams in section
