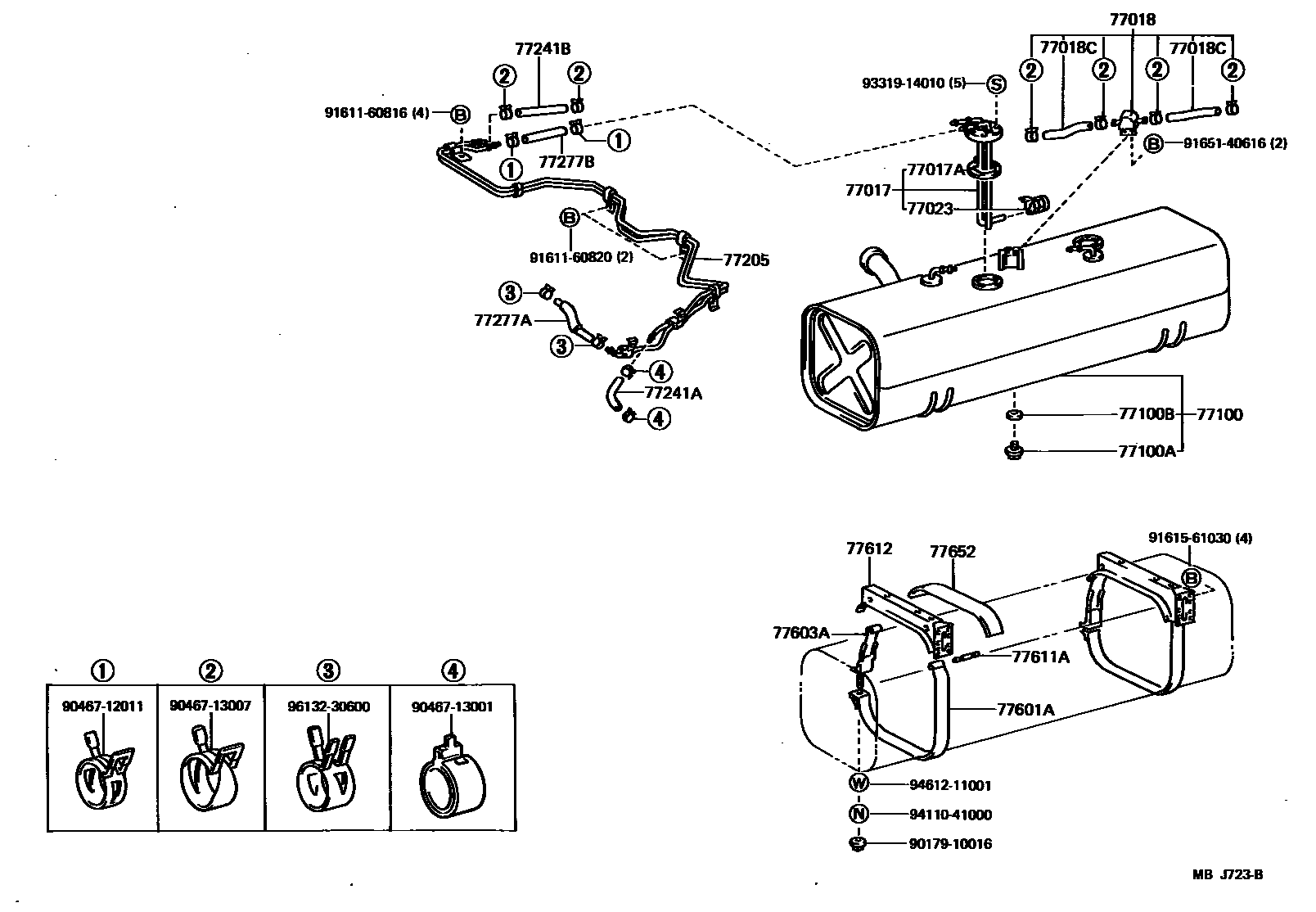

FUEL TANK & TUBE

0001 1 0002 1

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-26110iYH80198508-198708

main77017-26120iLH80198508-198708

sub77017-26121

77017AGASKET, FUEL TANK VENT

main77169-14020iLH80,YH80198508-198708

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-25110iLH80198508-198708

main77018-26130iYH80198508-198708

77018CHOSE, FUEL NO.1 (FOR FUEL LIQUID VAPOUR SEPARATE VALVE)

main95332-06040iYH80198508-198708

sub95333-06040

main95332-08020iLH80198508-198708

sub95333-08020

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-14030iYH80198508-198708

main77023-32010iLH80198508-198708

77100TANK ASSY, FUEL

main77001-26290iLH80,YH80..(T1,T2,T3)..TS198508-198708

main77001-26300iLH80..TW198508-198708

main77001-26330iYH80..TW198508-198708

77100APLUG(FOR FUEL TANK)

main90105-12116iLH80,YH80198508-198708

77100BGASKET(FOR FUEL TANK)

main90430-12245iLH80,YH80198508-198708

77205TUBE SUB-ASSY, FUEL MAIN

main77205-26010iLH80..T1,T2,T3198508-198708

sub77205-26040

main77205-26020iYH80198508-198708

sub77205-26060

main77205-26030iLH80..TW198508-198708

sub77205-26070

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main77259-26030iYH80198508-198708

main95332-08030iLH80..TW198508-198708

sub95333-08030

main95332-08040iLH80..T1,T2,T3198508-198708

sub95333-08040

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main95332-06020iYH80198508-198604

sub95333-06020

main95332-08020iLH80198508-198708

sub95333-08020

main95333-06014iYH80198604-198708

sub95333-06020

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main90447-11004iYH80198508-198708

main90447-12018iLH80198508-198708

77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

main95332-04020iYH80198508-198701

sub95333-04020

main95332-06020iLH80198508-198604

sub95333-06020

main95333-04014iYH80198701-198708

sub95333-04020

main95333-06014iLH80198604-198708

sub95333-06020

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-26050iLH80,YH80198508-198708

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77603-28010iLH80,YH80198508-198708

77611APIN (FOR FUEL TANK BAND)

main77629-25010iLH80,YH80198508-198708

77612BRACKET SUB-ASSY, FUEL TANK

main77501-28011iLH80,YH80198508-198708

sub77501-25091

77652CUSHION, FUEL TANK, NO.1

main77651-26040iLH80,YH80198508-198708

9017910016

main90179-10016

9046712011

main90467-12011

9046713001

main90467-13001

9046713007

main90467-13007

9161160816

main91611-60816

9161160820

main91611-60820

9161561030

main91615-61030

9165140616

main91651-40616

9331914010

main93319-14010

9411041000

main94110-41000

9461211001

main94612-11001

9613230600

main96132-30600

30 parts on this diagram · 2 diagrams in section
