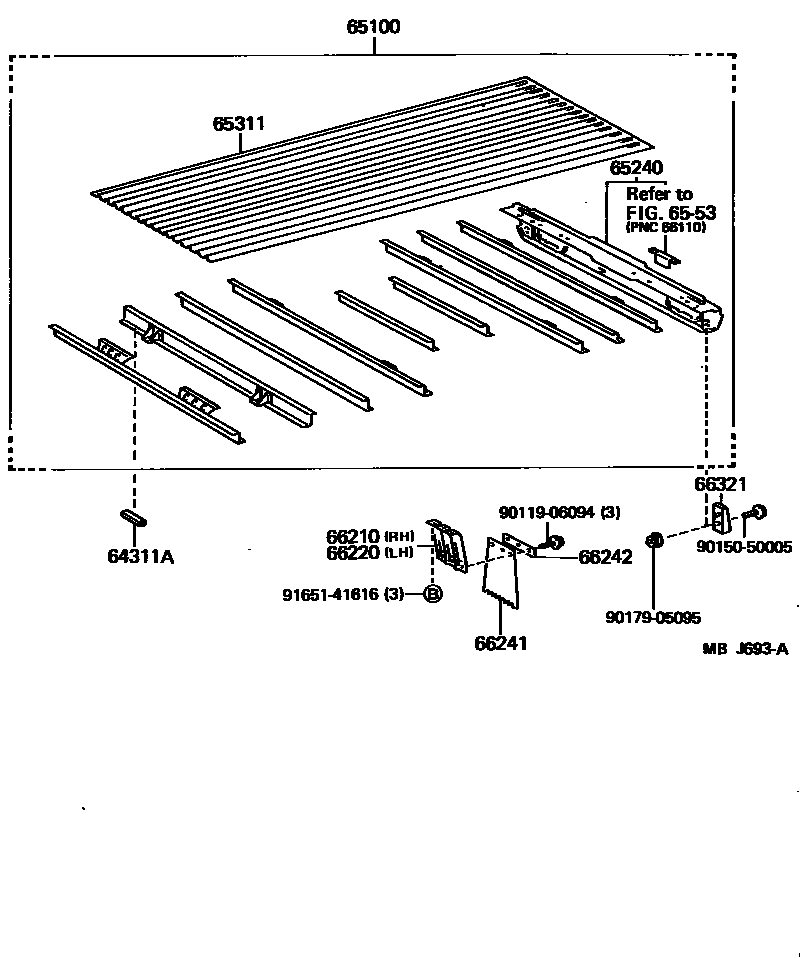

REAR BODY FLOOR & FENDER

0001 1 0002 1 0003 1 0004 1 0005 1

64311APROTECTOR, FUEL INLET

main58426-95700iLH80,YH80..T1198508-198708

65100FLOOR ASSY, REAR BODY

main65100-95A10iLH80,YH80..T1198508-198708

main65100-95A11iLH80,YH80..TW198508-198708

main65100-95A13iLH80,YH80..T3198508-198708

main65100-95A15iLH80,YH80..T2..TS198508-198708

65240CROSSMEMBER, REAR BODY FLOOR, TAIL

main65240-95A03iLH80,YH80..T1,TW198508-198708

main65240-95A05iLH80,YH80..T3198508-198708

main65240-95A07iLH80,YH80..T2..TS198508-198708

65311PANEL, FLOOR, CENTER

main65311-95A04iLH80,YH80..T1198508-198708

main65311-95A05iLH80,YH80..TW198508-198708

6553REAR BODY GUARD FRAME & TAIL GATE

→ Go to FIG 65-53

66210FENDER ASSY, REAR BODY, FRONT RH

main66010-92202iLH80..TB198508-198708

main66010-95A02iLH80,YH80..T3198508-198708

main66010-95A03iLH80,YH80..T2..ST198508-198708

main66010-95A04iLH80,YH80..TS..WT198508-198708

main66205-95A00iLH80,YH80..T1,TW198508-198708

66220FENDER ASSY, REAR BODY, FRONT LH

main66020-92202iLH80..TB198508-198708

main66020-95A02iLH80,YH80..T3198508-198708

main66020-95A03iLH80,YH80..T2..ST198508-198708

main66020-95A04iLH80,YH80..TS..WT198508-198708

main66205-95A00iLH80,YH80..T1,TW198508-198708

66241MUDGUARD, REAR

main66241-92501×2iLH80..TB198508-198708

main76625-95A00×2iLH80,YH80..T1,T3,TW198508-198708

main76625-95A01×2iLH80,YH80..TS..WT198508-198708

main76625-95A02iLH80,YH80..T2..ST198508-198708

RH

main76626-95A00iLH80,YH80..T2..ST198508-198708

LH

66242PLATE, REAR MUDGUARD SET RETAINER

main66242-92201×2iLH80..TB198508-198708

main66242-95011×2iLH80,YH80..TS..WT198508-198708

main66242-95012×2iLH80,YH80..T1,T3,TW198508-198708

main66242-95A00×2iLH80,YH80..T2..ST198508-198708

66321BUMPER, GATE RUBBER

main66321-92200×4iLH80..TB198508-198708

SIDE GATE

main66321-92704×2iLH80..TB198508-198608

TAIL GATE

main66321-92805×2iLH80..TB198608-198708

TAIL GATE

main66321-95017×2iLH80,YH80..(T2,T3)..TS198508-198708

RR

main66321-95406×2iLH80,YH80..T1,TW198508-198708

main66331-95010×2iLH80,YH80..(T2,T3)..TS198508-198708

FR

9011906094

main90119-06094

9015050005

main90150-50005

9017905095

main90179-05095

9165141616

main91651-41616

14 parts on this diagram · 5 diagrams in section
