FRAME

0001 1 0002 1

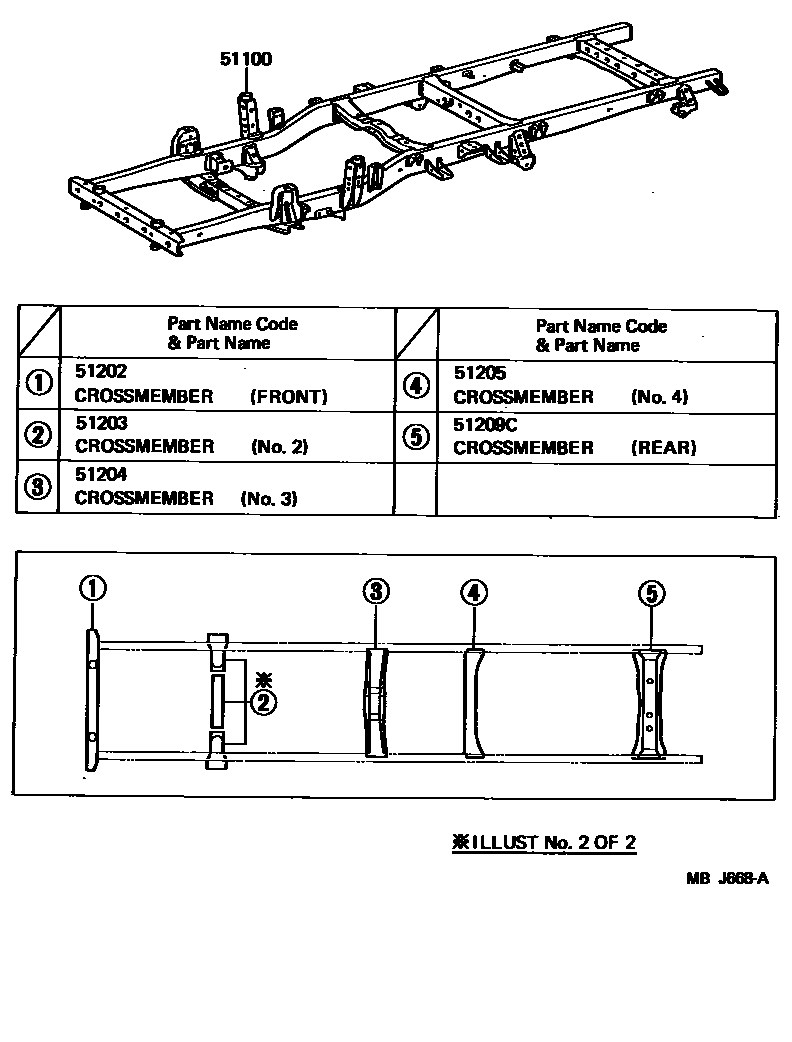

51100FRAME ASSY

main51001-26290iYH80..T1,T3198508-198708

main51001-26300iLH80..T1,T3198508-198708

main51001-26330iYH80..TW198508-198708

main51001-26340iLH80..TW198508-198708

main51001-26370iYH80..T2..ST198508-198708

main51001-26380iLH80..T2..ST198508-198708

main51001-26390iYH80..WT198508-198708

main51001-26400iLH80..WT198508-198708

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-26060iLH80,YH80198508-198708

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51203-26100iYH80198508-198708

main51203-26110iLH80198508-198708

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-26120iLH80,YH80198508-198708

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-26020iLH80,YH80..WT;LH80,YH80..T1,T3,TW198508-198708

main51204-26030iLH80,YH80..T2..ST198508-198708

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-26030iLH80,YH80..ST198508-198708

main51209-26040iLH80,YH80..WT198508-198708

6 parts on this diagram · 2 diagrams in section
