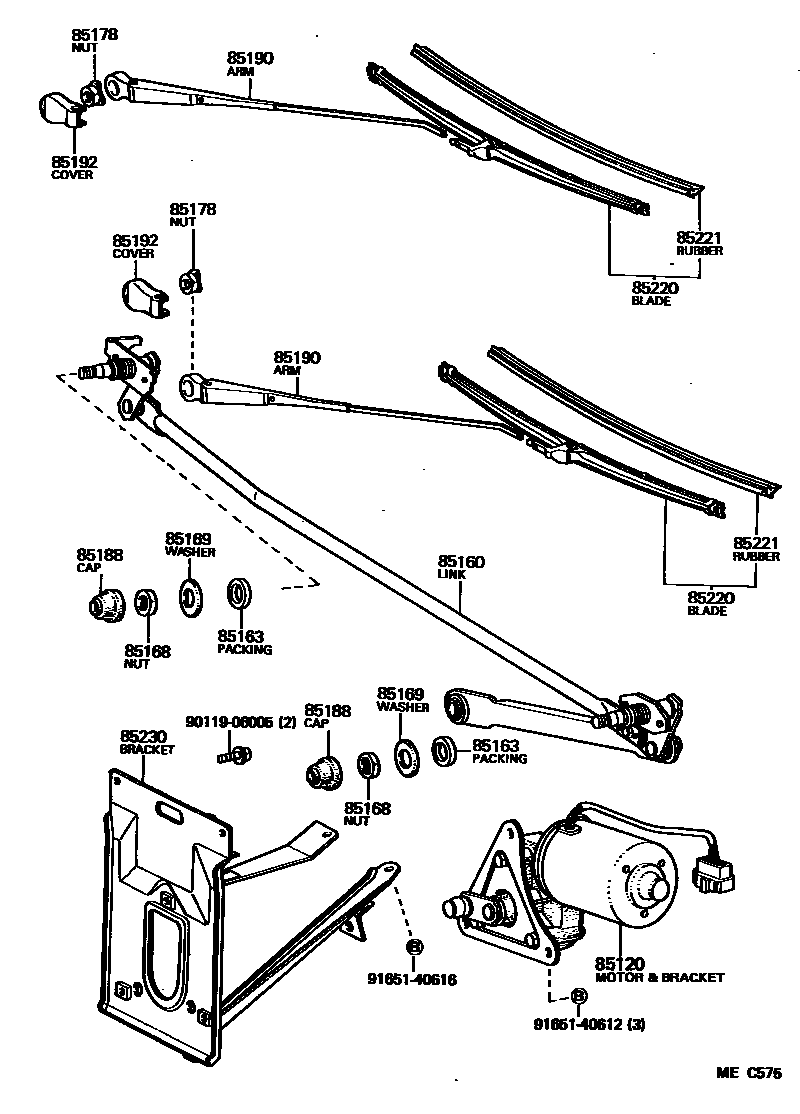

WINDSHIELD WIPER

85120MOTOR AND BRACKET ASSY, WINDSHIELD WIPER

main85120-95A06iLH24,RH24198211-198507

main85120-95A09iLH24,RH24198211-198507

COLD SPEC

85160LINK ASSY, WINDSHIELD WIPER

main85160-95A02iLH24,RH24198211-198507

85163PACKING, WINDSHIELD WIPER PIVOT

main85185-95010×2iLH24,RH24198211-198507

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-95010×2iLH24,RH24198211-198507

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85169-95010×2iLH24,RH24198211-198507

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08026×2iLH24,RH24198211-198507

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85135-95A01×2iLH24,RH24198211-198507

85190ARM ASSY, WINDSHIELD WIPER

main85190-95A08iLH24,RH24198211-198507

RH

main85210-95A00iLH24,RH24198211-198507

LH

85192COVER, WINDSHIELD WIPER ARM

main85195-95401×2iLH24,RH24198211-198507

85220BLADE ASSY, WINDSHIELD WIPER

main85220-95A05×2iLH24,RH24198211-198507

85221BLADE, WINDSHIELD WIPER

main85221-95A01×2iLH24,RH24198211-198507

85230BRACKET ASSY, WINDSHIELD WIPER

main85230-95A00iLH24,RH24198211-198507

9011906005

main90119-06005

9165140612

main91651-40612

9165140616

main91651-40616

15 parts on this diagram · 1 diagram in section
