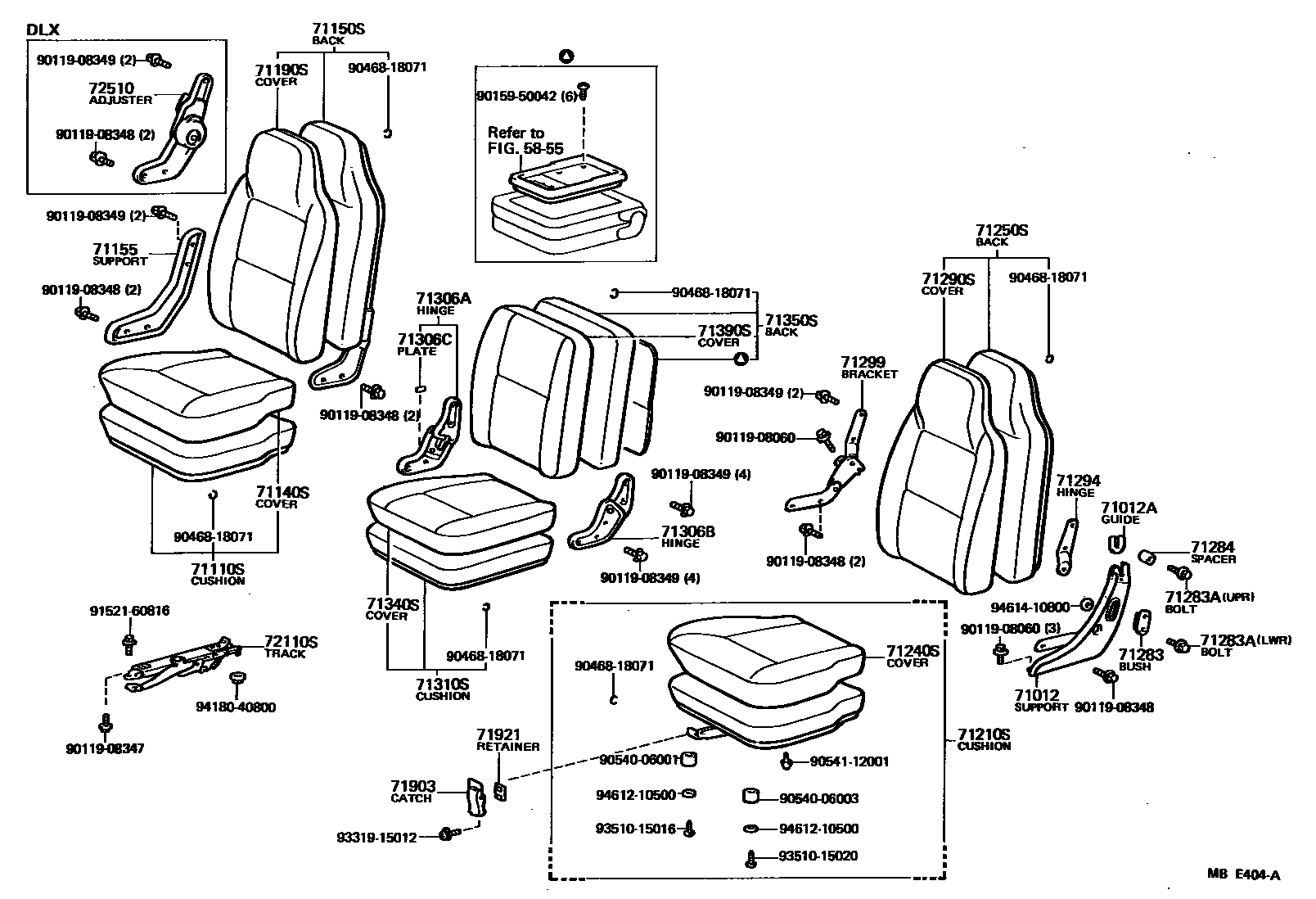

SEAT & SEAT TRACK

0001 1 0002 1

5855CONSOLE BOX & BRACKET

→ Go to FIG 58-55

71012SUPPORT SUB-ASSY, FRONT SEATBACK, LH

main71012-95A05iLH24,RH24198211-198507

71012AGUIDE, FRONT SEATBACK SUPPORT, LH

main71297-95A00iLH24,RH24198211-198507

71110SCUSHION ASSY, FRONT SEAT, RH

main71110-95A49iRH24..STD198211-198507

main71110-95A50iLH24,RH24..DLX198211-198507

71140SCOVER, FRONT SEAT CUSHION, RH

main71140-95A37iRH24..STD198211-198507

main71140-95A38iLH24,RH24..DLX198211-198507

71150SBACK ASSY, FRONT SEAT, RH

main71170-95A10iRH24..STD198211-198507

main71170-95A11iLH24,RH24..DLX198211-198507

71155SUPPORT, DRIVER SEATBACK, RH

main71191-95A05iRH24..STD198211-198507

71190SCOVER, FRONT SEAT BACK, RH

main71190-95A70iRH24..STD198211-198507

main71190-95A71iLH24,RH24..DLX198211-198507

71210SCUSHION ASSY, FRONT SEAT, LH

main71210-95A48iRH24..STD198211-198507

main71210-95A49iLH24,RH24..DLX198211-198507

71240SCOVER, FRONT SEAT CUSHION, LH

main71240-95A51iRH24..STD198211-198507

main71240-95A52iLH24,RH24..DLX198211-198507

71250SBACK ASSY, FRONT SEAT, LH

main71270-95A03iRH24..STD198211-198507

main71270-95A04iLH24,RH24..DLX198211-198507

71283BUSH, FRONT SEATBACK SUPPORT, LH

main71283-95A00iLH24,RH24198211-198507

71283ABOLT, FRONT SEATBACK SUPPORT, LH

main71282-95A00iLH24,RH24198211-198507

LWR

main71285-95A00iLH24,RH24198211-198507

UPR

71284SPACER, FRONT SEATBACK SUPPORT, LH

main71284-95A00iLH24,RH24198211-198507

71290SCOVER, FRONT SEATBACK, LH

main71290-95A16iRH24..STD198211-198507

main71290-95A17iLH24,RH24..DLX198211-198507

71294HINGE, FRONT SEATBACK, LH

main71294-95A05iLH24,RH24198211-198507

71299BRACKET, FRONT SEATBACK, LH

main71209-95A15iLH24,RH24198211-198507

71306AHINGE SUB-ASSY, CENTER SEAT, RH

main71330-95A07iLH24,RH24198211-198507

71306BHINGE SUB-ASSY, CENTER SEAT, LH

main71308-95A07iLH24,RH24198211-198507

71306CPLATE, CENTER SEAT HINGE CAUTION

main71386-95A00iLH24,RH24198211-198507

71310SCUSHION ASSY, FRONT SEAT, CENTER

main71310-95A34iLH24,RH24198211-198507

71340SCOVER, FRONT SEAT CUSHION, CENTER

main71340-95A31iLH24,RH24198211-198507

71350SBACK ASSY, FRONT SEAT, CENTER

main71350-95A43iLH24,RH24198211-198507

71390SCOVER, FRONT SEATBACK, CENTER

main71390-95A36iLH24,RH24198211-198507

71903CATCH SUB-ASSY, SEAT CUSHION, FRONT

main71901-95016iLH24,RH24198211-198507

71921RETAINER, ENGINE SERVICE HOLE COVER CATCH

main71921-95700iLH24,RH24198211-198507

72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

main72710-95A00iLH24,RH24198211-198507

72510ADJUSTER ASSY, RECLINING SEATBACK, RH

main72510-95A09iLH24,RH24..DLX198211-198507

9011908060

main90119-08060

9011908347

main90119-08347

9011908348

main90119-08348

9011908349

main90119-08349

9015950042

main90159-50042

9046818071

main90468-18071

9054006001

main90540-06001

9054006003

main90540-06003

9054112001

main90541-12001

9152160816

main91521-60816

9331915012

main93319-15012

9351015016

main93510-15016

9351015020

main93510-15020

9418040800

main94180-40800

9461210500

main94612-10500

9461410800

main94614-10800
