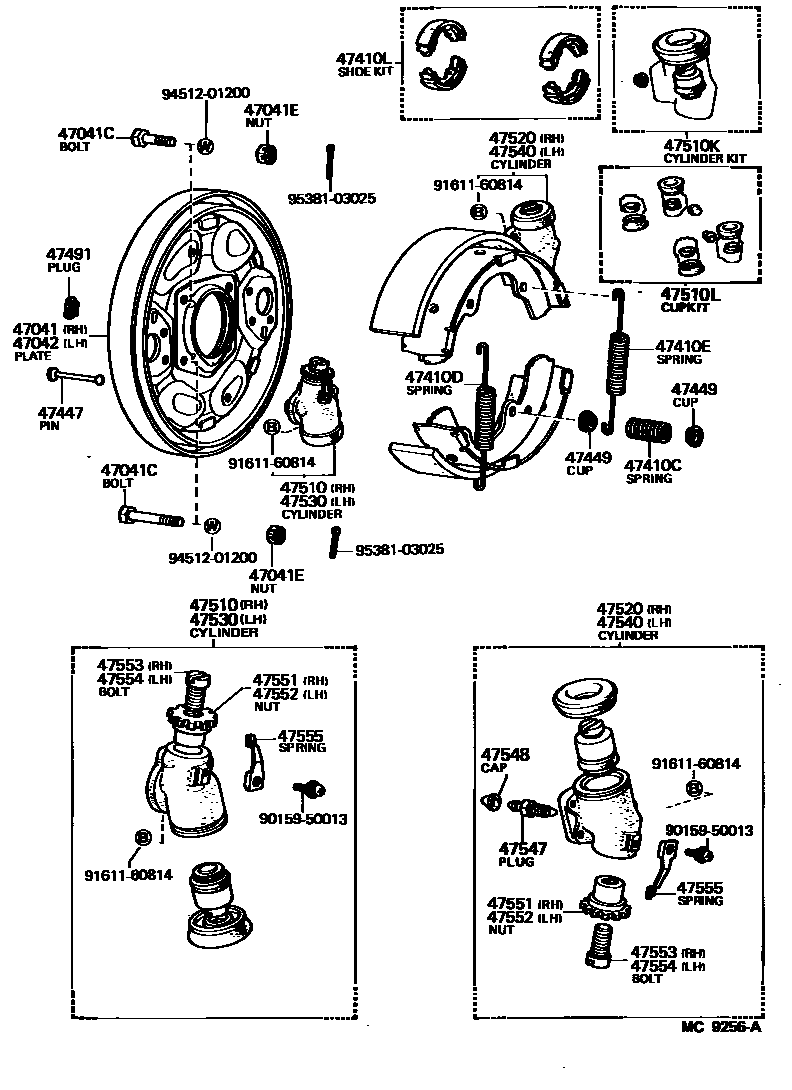

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-26040iLH24,RH24198211-198507

47041CBOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)

main90102-12050×4iLH24,RH24198211-198507

*12-1.25PX61-24

main90102-12058×4iLH24,RH24198211-198507

*12-1.25PX36-20

47041ENUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)

main94145-51200×8iLH24,RH24198211-198507

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-26040iLH24,RH24198211-198507

47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

main90501-20756×4iLH24,RH24198211-198507

47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-23301×2iLH24,RH24198211-198507

47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-23301×2iLH24,RH24198211-198507

47410LSHOE KIT, FRONT BRAKE

main04494-26030iLH24,RH24198211-198507

main04496-26020iLH24,RH24198211-198507

REBUILT

47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-20020×4iLH24,RH24198211-198507

47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47449-30020×8iLH24,RH24198211-198507

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-36010×4iLH24,RH24198211-198507

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47520-29135iLH24,RH24198211-198507

47510KCYLINDER KIT, FRONT WHEEL

main04473-26020×4iLH24,RH24198211-198507

47510LCUP KIT, FRONT WHEEL CYLINDER

main04905-35050iLH24,RH24198211-198507

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47510-29215iLH24,RH24198211-198507

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47540-29135iLH24,RH24198211-198507

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47530-29215iLH24,RH24198211-198507

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-12010×2iLH24,RH24198211-198507

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010×2iLH24,RH24198211-198507

47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47551-26020×2iLH24,RH24198211-198507

LH SCREW

47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47552-26020×2iLH24,RH24198211-198507

RH SCREW

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-30051×2iLH24,RH24198211-198507

LH SCREW

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47554-30051×2iLH24,RH24198211-198507

RH SCREW

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-26030×4iLH24,RH24198211-198507

9015950013

main90159-50013

9161160814

main91611-60814

9451201200

main94512-01200

9538103025

main95381-03025
