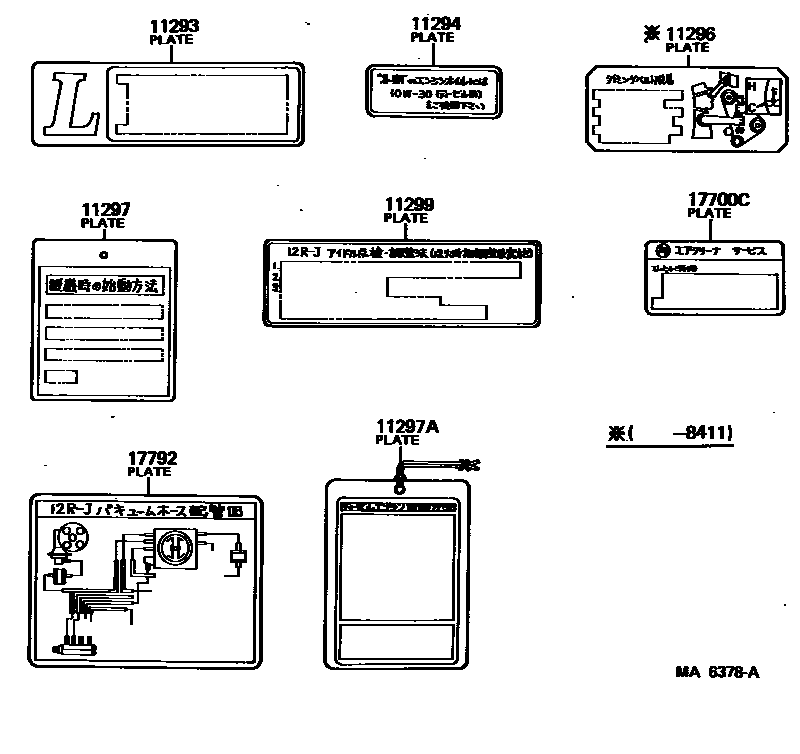

CAUTION PLATE & NAME PLATE (ENGINE)

11293PLATE, ENGINE CAUTION & ENGINE NAME

main11293-31110i12RJ..RH24198211-198507

main11293-54010iL..LH24198211-198507

L

11294PLATE, ENGINE CAUTION, NO.2

main11294-54040iL..LH24198411-198507

main11294-56010iL..LH24198211-198411

COLD SPEC

11296PLATE, TIMING BELT CAUTION

main11296-54010iL..LH24198211-198411

11297PLATE, ENGINE CAUTION, NO.3

main11297-13010i12RJ..RH24198211-198507

11297APLATE, ENGINE START CAUTION

main11297-64010iL..LH24198411-198507

11299PLATE, IDLE ADJUSTING CAUTION

main11299-31030i12RJ..RH24198211-198507

17700CPLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)

main90917-07092×2iL,12RJ..LH24,RH24198211-198307

main90917-07095×2iL,12RJ..LH24,RH24198307-198507

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-31140i12RJ..RH24198211-198507

8 parts on this diagram · 1 diagram in section
