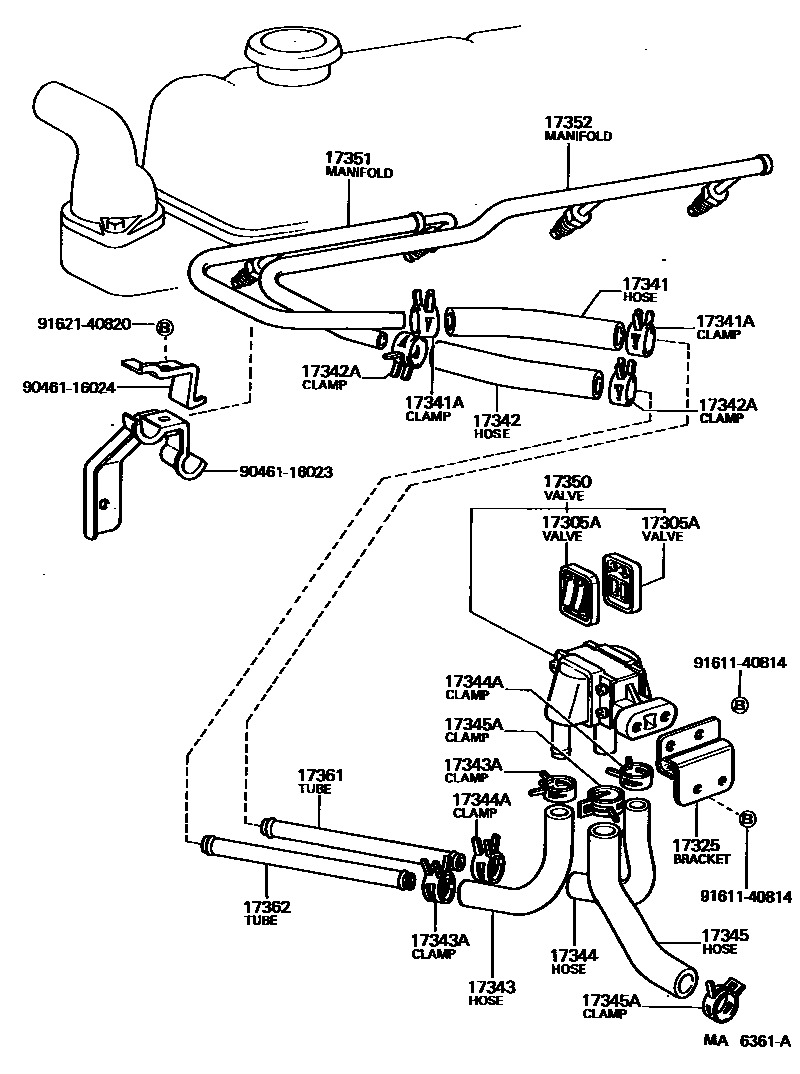

MANIFOLD AIR INJECTION SYSTEM
17305AVALVE SUB-ASSY, REED
17325BRACKET, AIR VALVE
17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342ACLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343ACLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)
17344HOSE, NO.4(FOR AIR INJECTION SYSTEM)
17344ACLAMP OR CLIP, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4)
17345HOSE, NO.5(FOR AIR INJECTION SYSTEM)
17345ACLAMP OR CLIP, NO.5(FOR AIR INJECTION SYSTEM HOSE, NO.5)
sub96134-52600
17350VALVE ASSY, REED
17351MANIFOLD, AIR INJECTION
17352MANIFOLD, AIR INJECTION, NO.2
17361TUBE, AIR
17362TUBE, AIR, NO.2
9046116023
main90461-16023
9046116024
main90461-16024
9161140814
main91611-40814
9162140820
main91621-40820
21 parts on this diagram · 1 diagram in section
