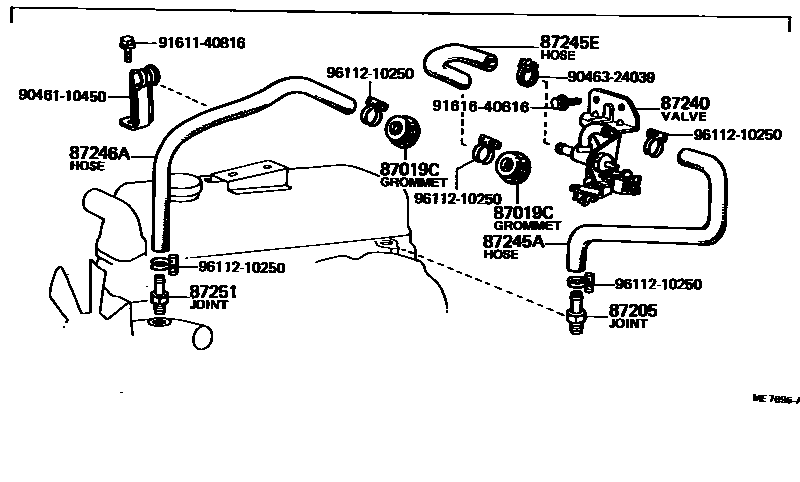

HEATING & AIR CONDITIONING - WATER PIPING

87019CGROMMET, HEATER HOSE

main90480-36005×2iRK11#197903-198603

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-20070iRK11#197903-198308

main87251-30200iRK111198308-198603

87240VALVE ASSY, HEATER WATER

main87240-89109iRK11#197903-198603

87245AHOSE, HEATER WATER, INLET A

main87245-95110iRK11#197903-198603

87245EHOSE, HEATER WATER, INLET E

main87245-89121iRK11#197903-198603

87246AHOSE, HEATER WATER, OUTLET A

main87245-95113iRK110197903-198006

main87245-95116iRK110198006-198201

main87245-95119iRK111198201-198603

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-20070iRK11#197903-198308

main87251-30200iRK111198308-198603

9046110450

main90461-10450

9046324039

main90463-24039

9161140816

main91611-40816

9161640616

main91616-40616

9611210250

main96112-10250

12 parts on this diagram · 1 diagram in section
