HORN

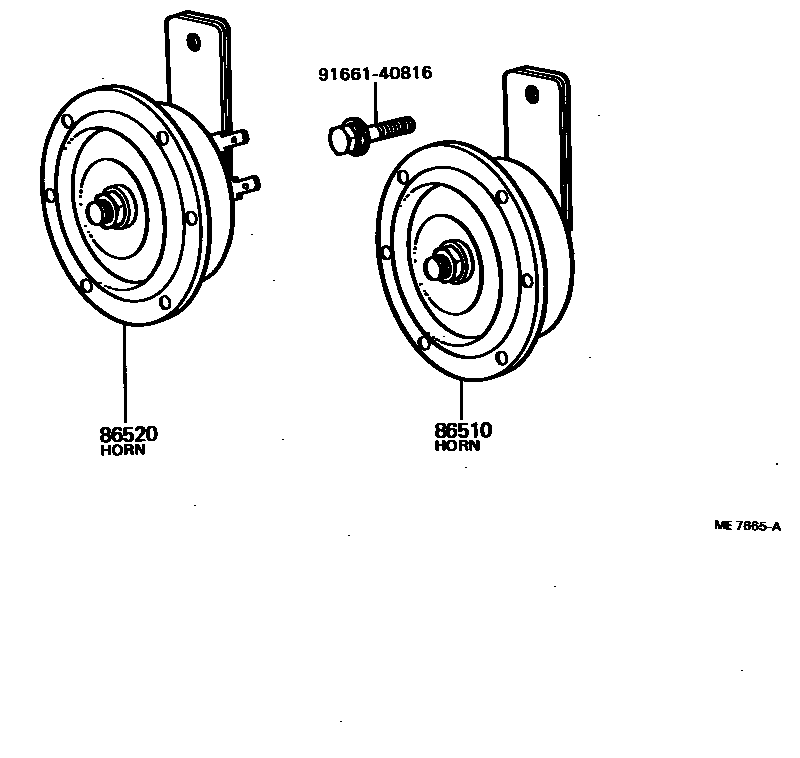

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-20110i197903-198108

DENSO

main86510-20120i197903-198008

MARUKO

main86510-22050i198108-198208

DENSO

main86510-22060i198008-198603

MARUKO

86520HORN ASSY, LOW PITCHED

main86520-14010i197903-198108

DENSO

main86520-14021i197903-198008

MARUKO

main86520-22050i198108-198208

DENSO

main86520-22060i198008-198603

MARUKO

9166140816

main91661-40816

3 parts on this diagram · 1 diagram in section
