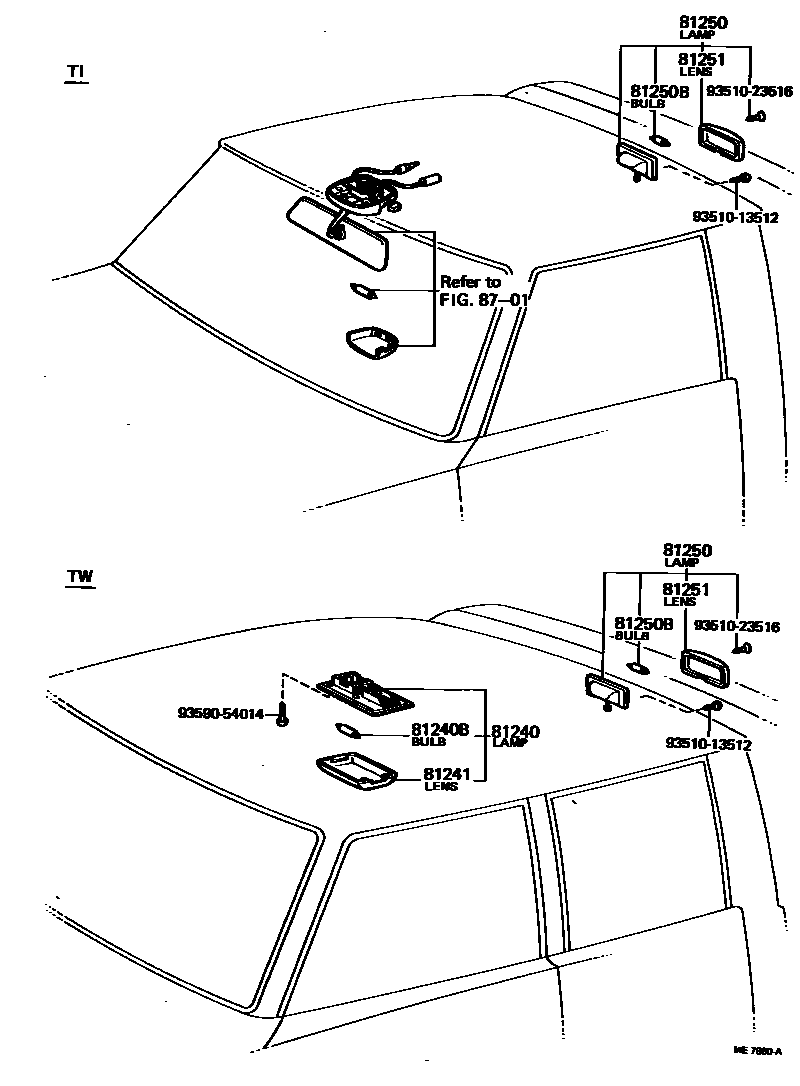

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-20060-03iRK11#..TW197903-198507

GRAY,GRAY

81240BBULB, ROOM LAMP, NO.1

main99132-12100iRK11#..TW197903-198507

81241LENS, ROOM LAMP, NO.1

main81241-20060iRK11#..TW197903-198507

81250LAMP ASSY, ROOM, NO.2

main81240-95210iRK110..TW;RK110..175..CBU197904-198201

NTT

81250BBULB, ROOM LAMP, NO.2

main90981-11004iRK110..TW;RK110..175..CBU197904-198201

81251LENS, ROOM LAMP, NO.2

main81243-95210iRK110..TW;RK110..175..CBU197904-198201

NTT

8701MIRROR

→ Go to FIG 87-01

9351013512

main93510-13512

9351023516

main93510-23516

9359054014

main93590-54014

10 parts on this diagram · 1 diagram in section
