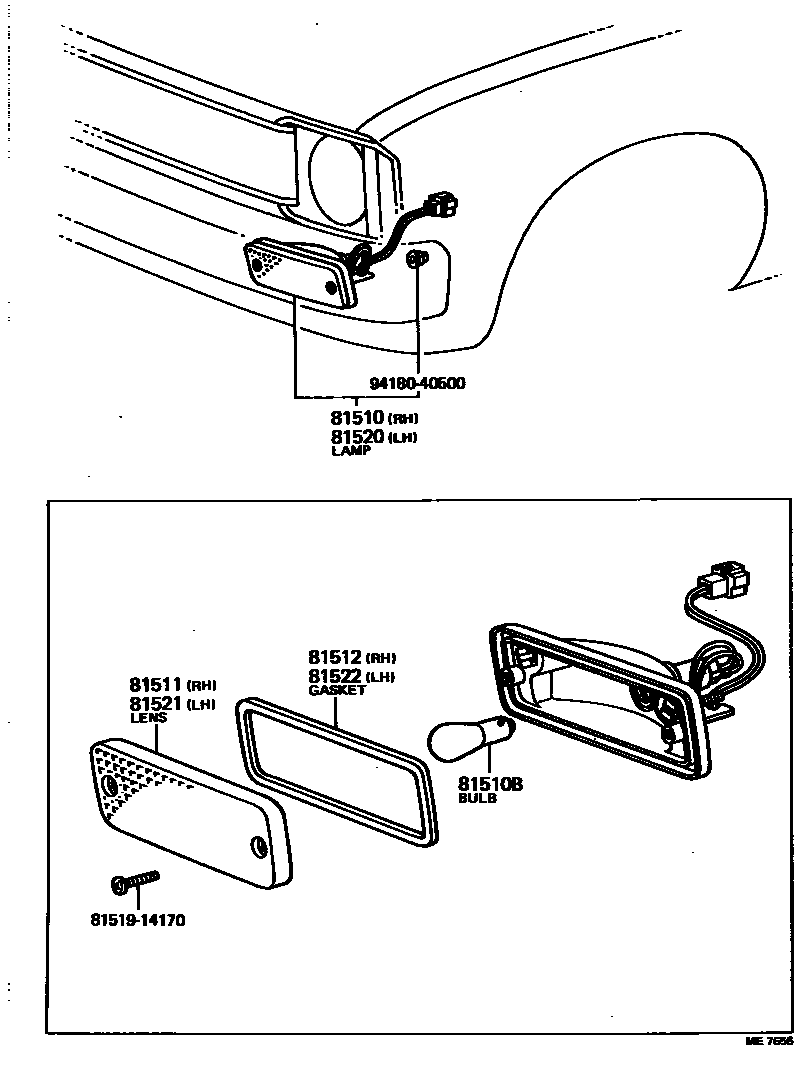

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-39315iRK11#197903-198603

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11230×2iRK11#197903-198603

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-89118iRK11#197903-198603

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-14150iRK11#197903-198603

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-39315iRK11#197903-198603

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-89118iRK11#197903-198603

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-14150iRK11#197903-198603

8151914170BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-14170

9418040500

main94180-40500

9 parts on this diagram · 1 diagram in section
