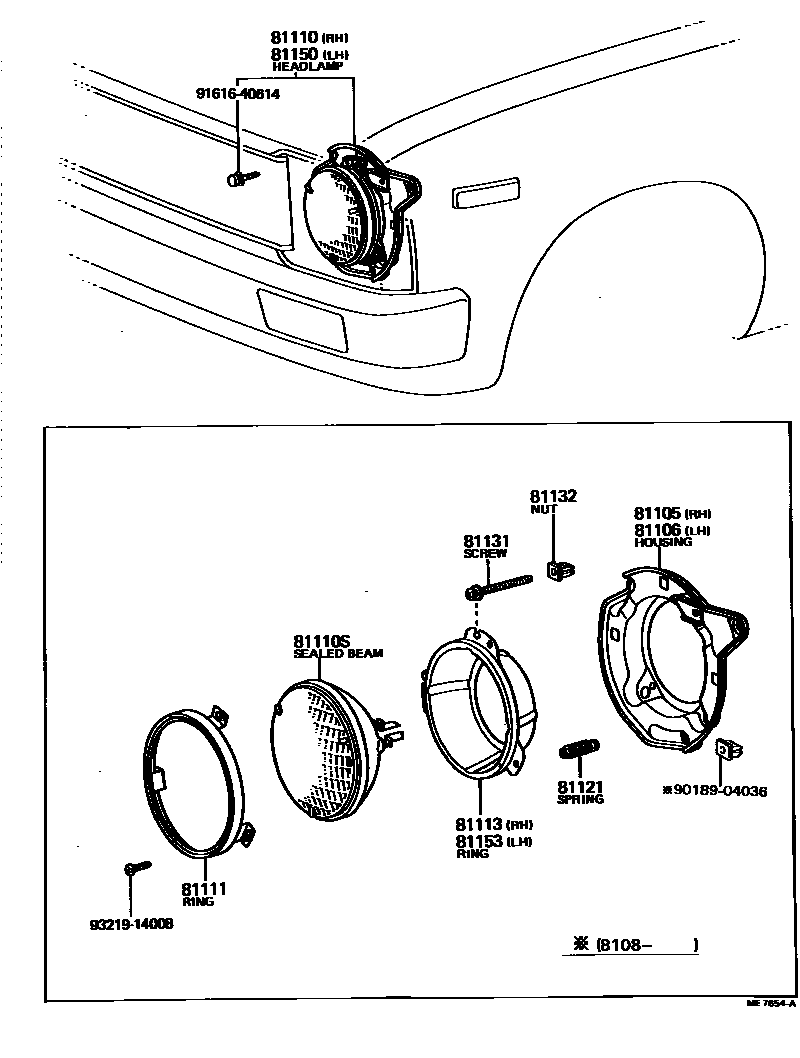

HEADLAMP

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-89117iRK110197903-198108

main81105-95111iRK11#198108-198603

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-89117iRK110197903-198108

main81106-95111iRK11#198108-198603

81110HEADLAMP ASSY, RH

main81110-39465iRK110197903-198108

main81110-39815iRK11#198108-198603

81110SSEALED BEAM UNIT, NO.1

main90981-01022×2iRK11#197903-198603

81111RING, SEALED BEAM RETAINING

main81111-89117×2iRK11#197903-198603

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-89117iRK110197903-198108

main81153-95188iRK11#198108-198603

81121SPRING, HEADLAMP TENSION

main81121-62010×2iRK11#197903-198603

81131SCREW, HEADLAMP ADJUSTING

main81131-10031×4iRK11#197903-198603

81132NUT, HEADLAMP SELF LOCKING

main90189-04036×2iRK11#198108-198603

main90189-05013×2iRK110197903-198108

81150HEADLAMP ASSY, LH

main81150-39465iRK110197903-198108

main81150-39815iRK11#198108-198603

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-89117iRK11#197903-198603

9018904036

main90189-04036

9161640614

main91616-40614

9321914008

main93219-14008

14 parts on this diagram · 1 diagram in section
