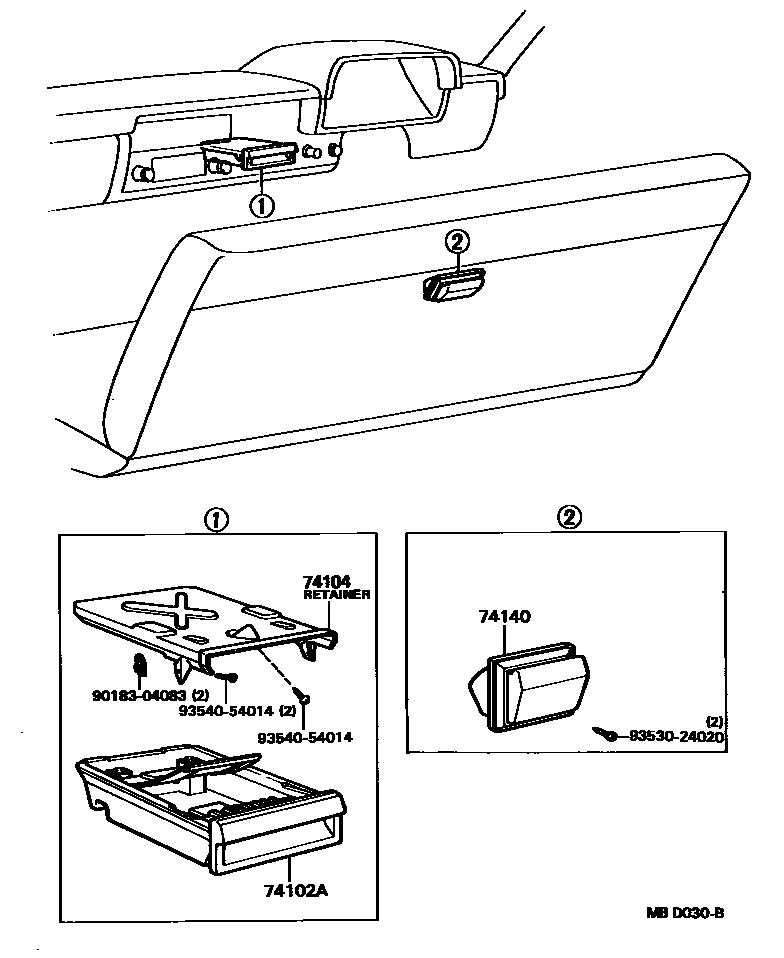

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-89101-03iRK11#197903-198603

DARK GRAY-M,GRAY

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-89104iRK11#197903-198603

74140RECEPTACLE ASSY, ASH(FOR SEAT)

main74130-10060-01iRK110..TW197903-198201

BLACK,BLACK

main74130-14020-01iRK111..TW198201-198308

BLACK,BLACK

main74130-14020-36iRK111..TW198308-198507

DARK BROWN,BROWN

9018304083

main90183-04083

9353024020

main93530-24020

9354054014

main93540-54014

6 parts on this diagram · 1 diagram in section
