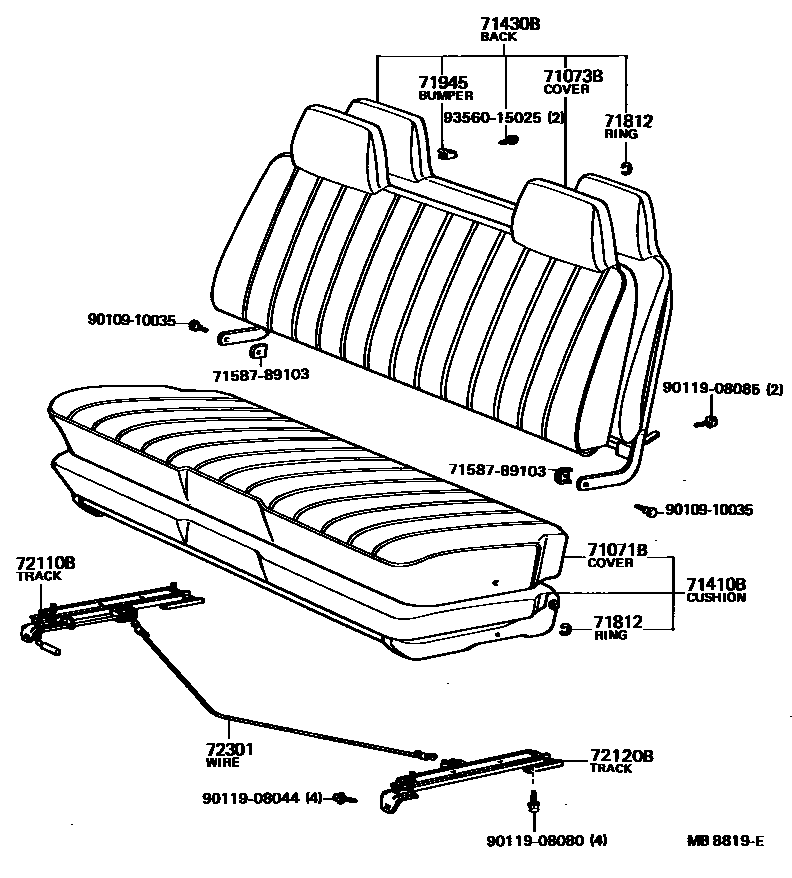

SEAT & SEAT TRACK

0001 1 0002 1

71071BCOVER, FRONT SEAT CUSHION(FOR BENCH TYPE)

main71071-95129-01197903-198108

main71071-95134-01197903-198108

main71071-95159-01198108-198308

main71071-95159-05198308-198603

main71071-95160-01198108-198308

main71071-95160-05198308-198507

71073BCOVER, FRONT SEATBACK(FOR BENCH TYPE)

main71073-95130-01197903-198108

main71073-95139-01197903-198108

main71073-95151-01198108-198308

main71073-95151-05198308-198603

main71073-95159-01198108-198308

main71073-95159-05198308-198507

71410BCUSHION ASSY, FRONT SEAT(FOR BENCH TYPE)

main71410-95127-01197903-198108

main71410-95130-01197903-198108

main71410-95150-01198108-198308

main71410-95150-05198308-198603

main71410-95151-01198108-198308

main71410-95151-05198308-198507

71430BBACK ASSY, FRONT SEAT(FOR BENCH TYPE)

main71430-95128-01197903-198108

main71430-95136-01197903-198108

main71430-95143-01198108-198308

main71430-95143-05198308-198603

main71430-95148-01198108-198308

main71430-95148-05198308-198507

71812CLIP (FOR FRONT SEAT CUSHION COVER)

main90468-18071197903-198603

71945BUMPER, SEATBACK

main71739-89103197903-198603

72110BTRACK ASSY, SEAT, OUTER RH (FOR BENCH SEAT)

main72110-95110197903-198603

72120BTRACK ASSY, SEAT, OUTER LH (FOR BENCH SEAT)

main72120-95110197903-198603

72301WIRE SUB-ASSY, SEAT TRACK EQUALIZING

main72301-95111197903-198010

main72301-95113198010-198603

7158789103PROTECTOR, FRONT SEATBACK EDGE

main71587-89103

9010910035

main90109-10035

9011908044

main90119-08044

9011908080

main90119-08080

9011908085

main90119-08085

9356015025

main93560-15025

15 parts on this diagram · 2 diagrams in section
