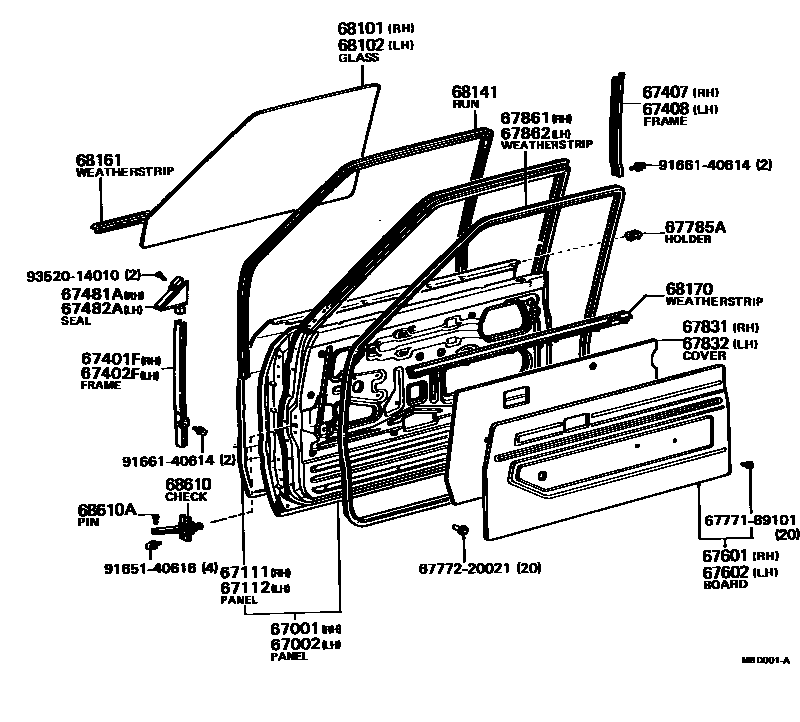

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH
67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
BLACK,BLACK
BLACK,BLACK
BEIGE,BEIGE
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
BLACK,BLACK
BLACK,BLACK
BEIGE,BEIGE
67785AHOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)
BLACK,BLACK
BLACK,BLACK
BEIGE,BEIGE
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68141RUN, FRONT DOOR GLASS
68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
RH
LH
68610CHECK ASSY, FRONT DOOR
68610APIN(FOR FRONT DOOR CHECK)
6777189101WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-89101
6777220021WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-20021
9165140616
main91651-40616
9166140614
main91661-40614
9352014010
main93520-14010
29 parts on this diagram · 1 diagram in section
