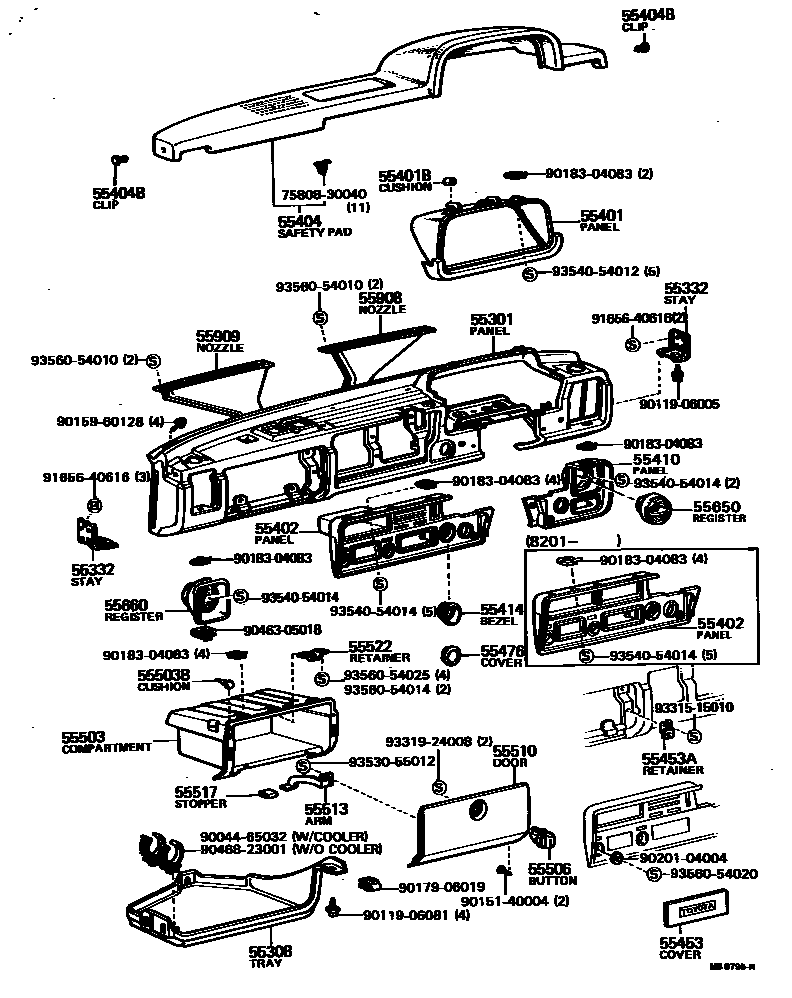

INSTRUMENT PANEL & GLOVE COMPARTMENT

55301PANEL SUB-ASSY, INSTRUMENT

main55301-89113iRK110197903-198008

main55301-89117iRK110198008-198201

main55301-89118iRK111198201-198603

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55611-89101iRK11#197903-198603

55332STAY, INSTRUMENT PANEL

main55326-89101iRK11#197903-198603

RH

main55327-89102iRK11#197903-198603

LH

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55411-89103-01iRK11#197903-198308

BLACK,BLACK

main55411-89103-06iRK111198308-198603

BROWN,BROWN

55401BCUSHION, INSTRUMENT CLUSTER FINISH PANEL

main55419-89101×2iRK11#197903-198603

55402PANEL SUB-ASSY, INSTRUMENT LAYOUT, CENTER

main55405-89112iRK110198008-198201

main55434-89102iRK110197903-198008

main55434-89104iRK110..TW;RK110..175198108-198201

W/RADIO

main55434-89133iRK111198201-198603

main55434-89134iRK111..TW;RK111..175198201-198507

W/RADIO

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-89101-01iRK110197903-198002

BLACK,BLACK

main55401-89105-01iRK11#198002-198308

BLACK,BLACK

main55401-89105-06iRK111198308-198603

BROWN,BROWN

55404BCLIP, SAFETY PAD SET

main55466-89101-01×2iRK11#197903-198308

BLACK,BLACK

main55466-89101-06×2iRK111198308-198603

BROWN,BROWN

55410PANEL ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-89108iRK110197903-198201

main55404-89112iRK111198201-198603

55414BEZEL, CIGAR LIGHTER HOLE

main55477-89101iRK11#197903-198603

55453COVER, RADIO TUNER OPENING

main55522-89101-03iRK110197903-198108

GRAY,GRAY

main55522-89102-03iRK11#198108-198202

GRAY,GRAY

main55522-89103-03iRK111198202-198603

DARK GRAY-M,GRAY

55453ARETAINER, RADIO TUNER OPENING, NO.1

main55437-89101iRK110197903-198108

main55437-89103iRK11#198108-198603

55476COVER, CIGARETTE LIGHTER HOLE

main55532-89102iRK11#197903-198603

55503COMPARTMENT SUB-ASSY, GLOVE

main55506-89101iRK11#197903-198603

55503BCUSHION(FOR GLOVE COMPARTMENT)

main90541-04012×2iRK11#197903-198603

55506BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK

main55560-12020iRK11#197903-198603

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-89104-01iRK11#197903-198308

BLACK,BLACK

main55501-95117-06iRK111198308-198603

BROWN,BROWN

55513ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-89101iRK11#197903-198603

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-89104iRK11#197903-198603

55522RETAINER, GLOVE COMPARTMENT MALE

main55561-89102iRK11#197903-198603

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-89103iRK11#197903-198603

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55650-89101-03iRK11#197903-198603

DARK GRAY-M,GRAY

55908NOZZLE SUB-ASSY, DEFROSTER, RH

main55950-89101iRK11#197903-198603

55909NOZZLE SUB-ASSY, DEFROSTER, LH

main55960-89101iRK11#197903-198603

7580830040

main75808-30040

9004465032

main90044-65032

9011906005

main90119-06005

9011906081

main90119-06081

9015140004

main90151-40004

9015960128

main90159-60128

9017906019

main90179-06019

9018304083

main90183-04083

9020104004

main90201-04004

9046305018

main90463-05018

9046823001

main90468-23001

9165640616

main91656-40616

9331515010

main93315-15010

9331924008

main93319-24008

9353055012

main93530-55012

9354054012

main93540-54012

9354054014

main93540-54014

9356054010

main93560-54010

9356054014

main93560-54014

9356054020

main93560-54020

9356054025

main93560-54025

45 parts on this diagram · 1 diagram in section
