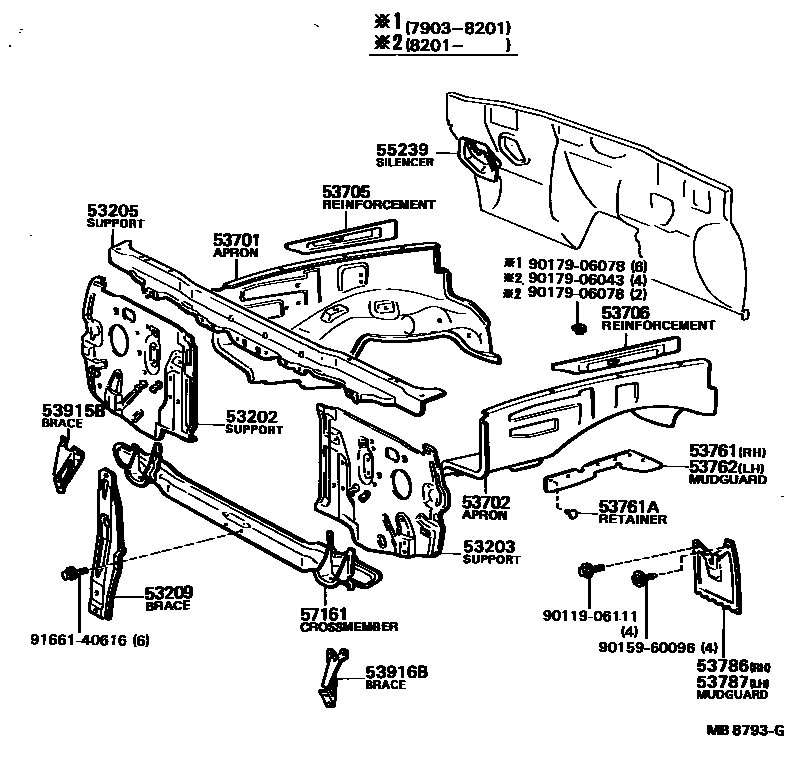

FRONT FENDER APRON & DASH PANEL
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53209BRACE SUB-ASSY, HOOD LOCK
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53705REINFORCEMENT SUB-ASSY, FRONT FENDER APRON, REAR RH
53706REINFORCEMENT SUB-ASSY, FRONT FENDER APRON, REAR LH
53761MUDGUARD, RH
53761ARETAINER(FOR MUDGUARD)
BLACK,BLACK
53786MUDGUARD, FRONT, RH
53787MUDGUARD, FRONT, LH
53915BBRACE, VALANCE PANEL TO RADIATOR SUPPORT, RH
53916BBRACE, VALANCE PANEL TO RADIATOR SUPPORT, LH
55239SILENCER, STEERING COLUMN HOLE COVER
9011906111
main90119-06111
9015960096
main90159-60096
9017906043
main90179-06043
9017906078
main90179-06078
9166140616
main91661-40616
22 parts on this diagram · 1 diagram in section
