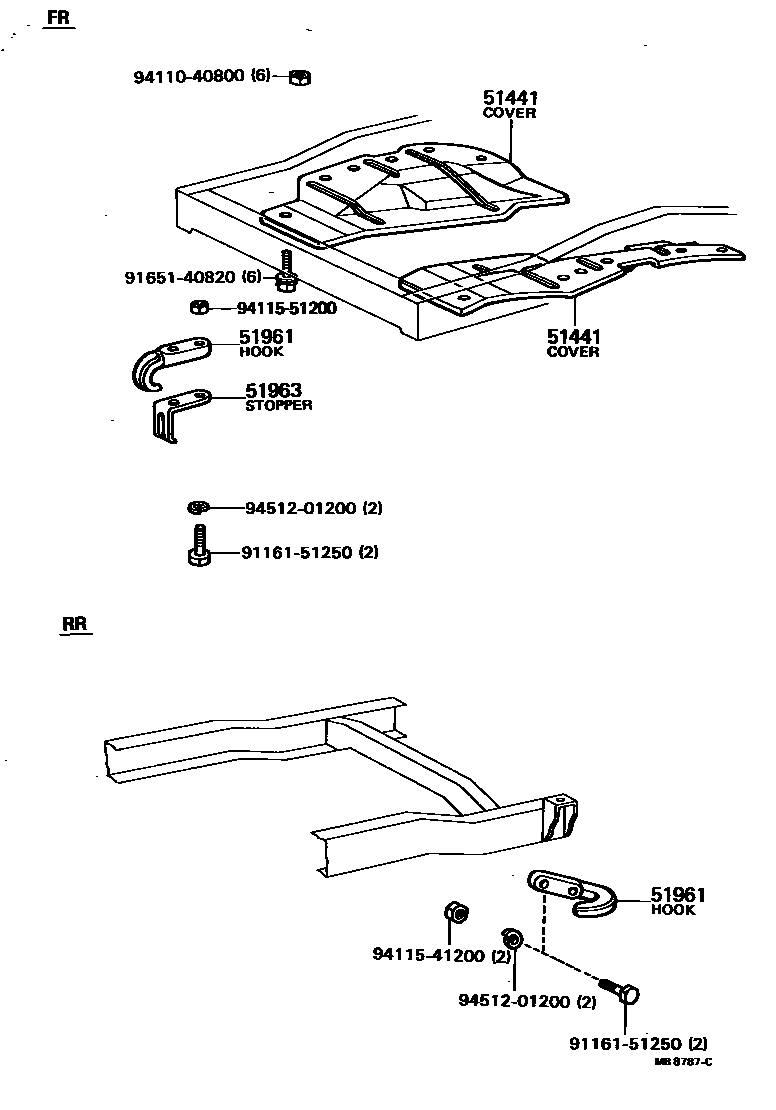

SUSPENSION CROSSMEMBER & UNDER COVER

51441COVER, ENGINE UNDER, NO.1

main51441-35011iRK11#197903-198603

RH

main51442-35051iRK11#197903-198603

LH

51961HOOK, NO.1

main51961-60010×2iRK11#197903-198603

51963STOPPER, HOOK WIRE

main51963-35010iRK11#197903-198603

9116151250

main91161-51250

9165140820

main91651-40820

9411040800

main94110-40800

9411541200

main94115-41200

9411551200

main94115-51200

9451201200

main94512-01200

9 parts on this diagram · 1 diagram in section
