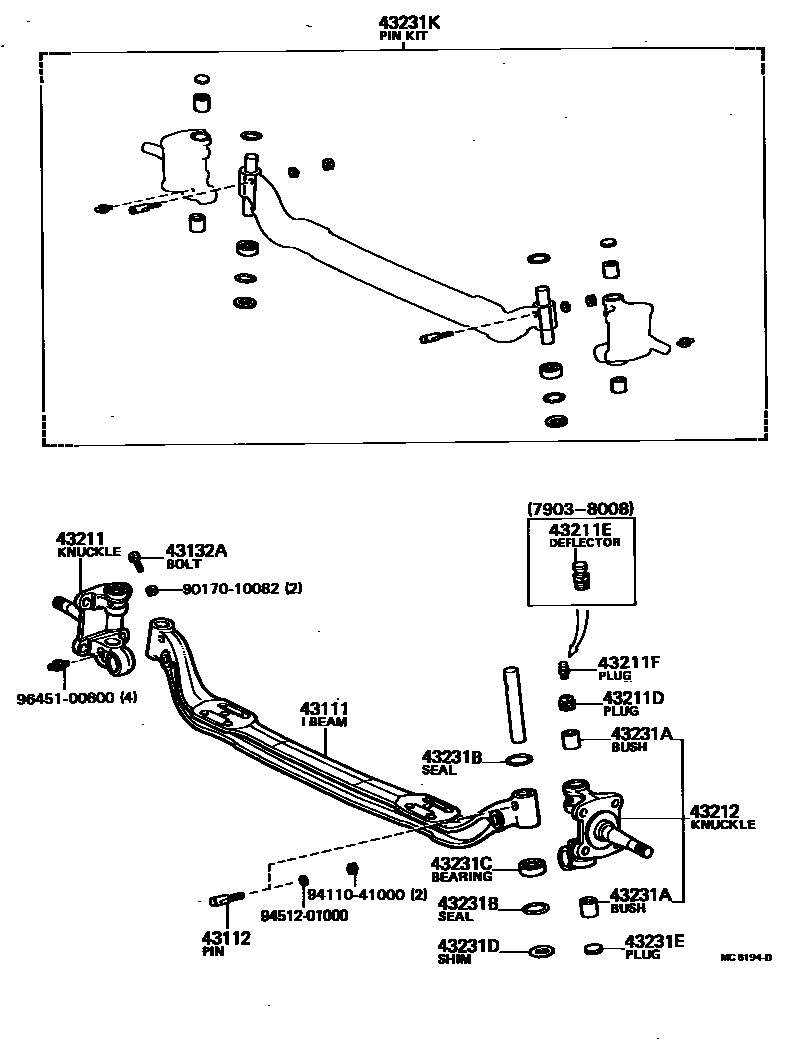

FRONT AXLE ARM & STEERING KNUCKLE
43111I BEAM, FRONT AXLE
43112PIN, KING PIN LOCK
43132ABOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)
43211KNUCKLE, STEERING, RH
43211DPLUG (FOR STEERING KNUCKLE)
43211EDEFLECTOR, DUST (FOR STEERING KNUCKLE)
43211FPLUG, BLEEDER (FOR STEERING KNUCKLE)
43212KNUCKLE, STEERING, LH
43231ABUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUSH)
LWR
UPR
43231BSEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)
ID=24.7,OD=28
ID=37.2,OD=41.5
43231CBEARING (FOR STEERING KNUCKLE KING PIN)
43231DSHIM (FOR KING PIN)
43231EPLUG (FOR STEERING KNUCKLE)
43231KPIN KIT, STEERING KNUCKLE KING
9017010082
main90170-10082
9411041000
main94110-41000
9451201000
main94512-01000
9645100600
main96451-00600
18 parts on this diagram · 1 diagram in section
