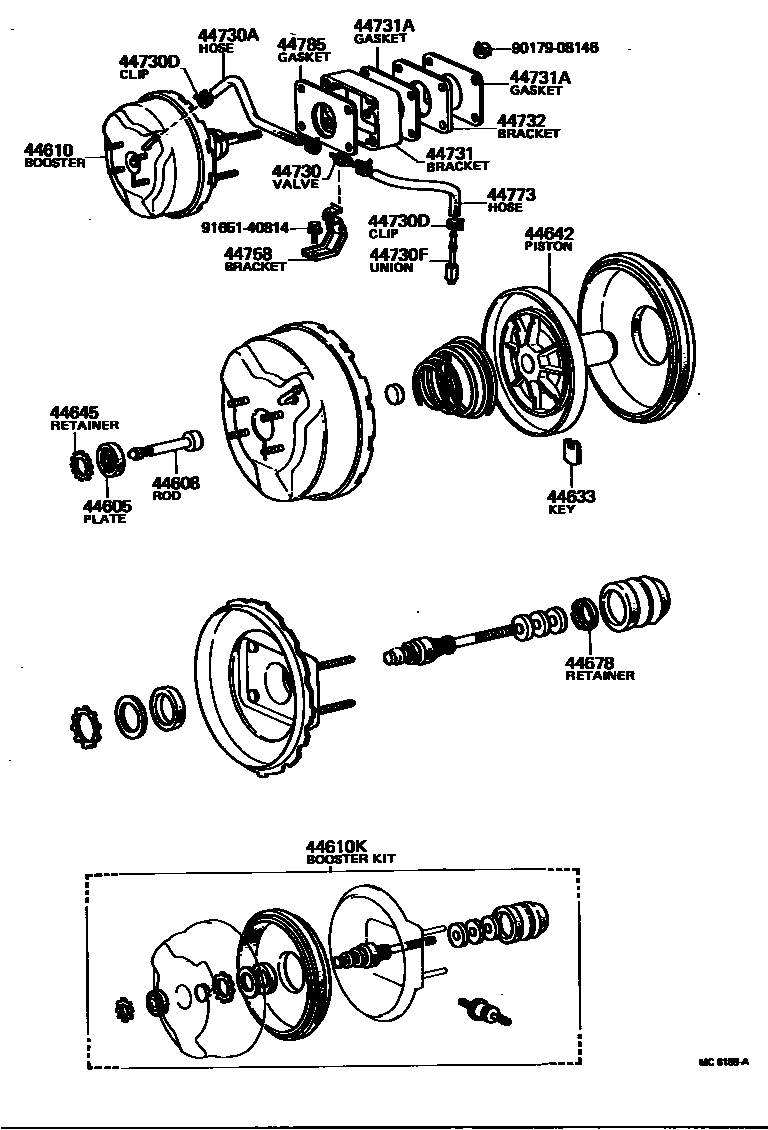

BRAKE BOOSTER & VACUUM TUBE
44605PLATE & SEAL SUB-ASSY, BOOSTER
44608PUSH ROD SUB-ASSY, BOOSTER
44610BOOSTER ASSY, BRAKE
44610KBOOSTER KIT, BRAKE
44633KEY, BOOSTER VALVE PLUNGER
44642PISTON, BRAKE BOOSTER
44645RETAINER, BOOSTER PUSH ROD SEAL
44678RETAINER, BOOSTER AIR CLEANER
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730AHOSE, VACUUM, NO.1
44730DCLIP(FOR VACUUM HOSE, NO.1)
44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)
44731BRACKET, BRAKE BOOSTER, FRONT
44731AGASKET, BRAKE BOOSTER BRACKET
44732BRACKET, BRAKE BOOSTER, REAR
44758BRACKET, VACUUM CHECK VALVE
44773HOSE, VACUUM, NO.2
44785GASKET, BRAKE BOOSTER
9017908146
main90179-08146
9165140814
main91651-40814
20 parts on this diagram · 1 diagram in section
