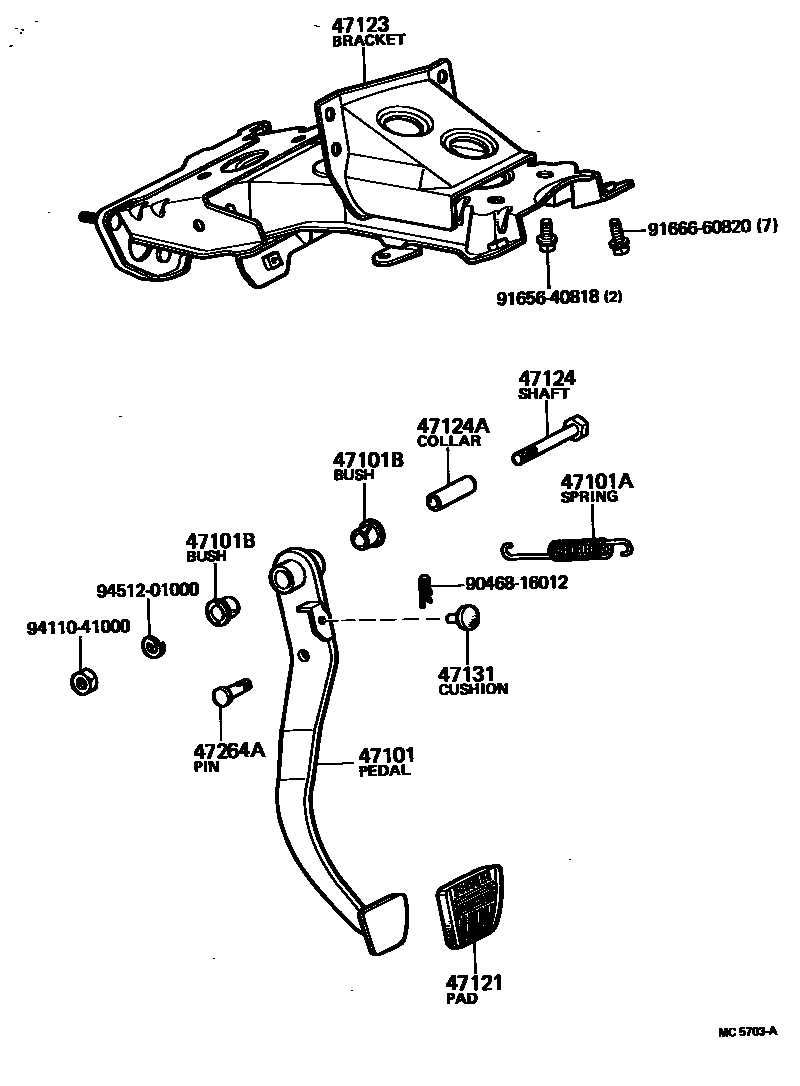

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-35150iRK11#197903-198603

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-16024iRK11#197903-198603

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007×2iRK11#197903-198603

47121PAD, BRAKE PEDAL

main31321-14010iRK11#197903-198310

main31321-14020iRK111198310-198603

47123BRACKET, BRAKE PEDAL

main55106-89111iRK110197903-198108

main55106-89117iRK110198108-198603

47124SHAFT, BRAKE PEDAL

main91121-51060iRK11#197903-198603

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iRK11#197903-198603

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iRK11#197903-198603

47264APIN(FOR PUSH ROD)

main90249-10048iRK11#197903-198603

9046816012

main90468-16012

9165640818

main91656-40818

9166660820

main91666-60820

9411041000

main94110-41000

9451201000

main94512-01000

14 parts on this diagram · 1 diagram in section
