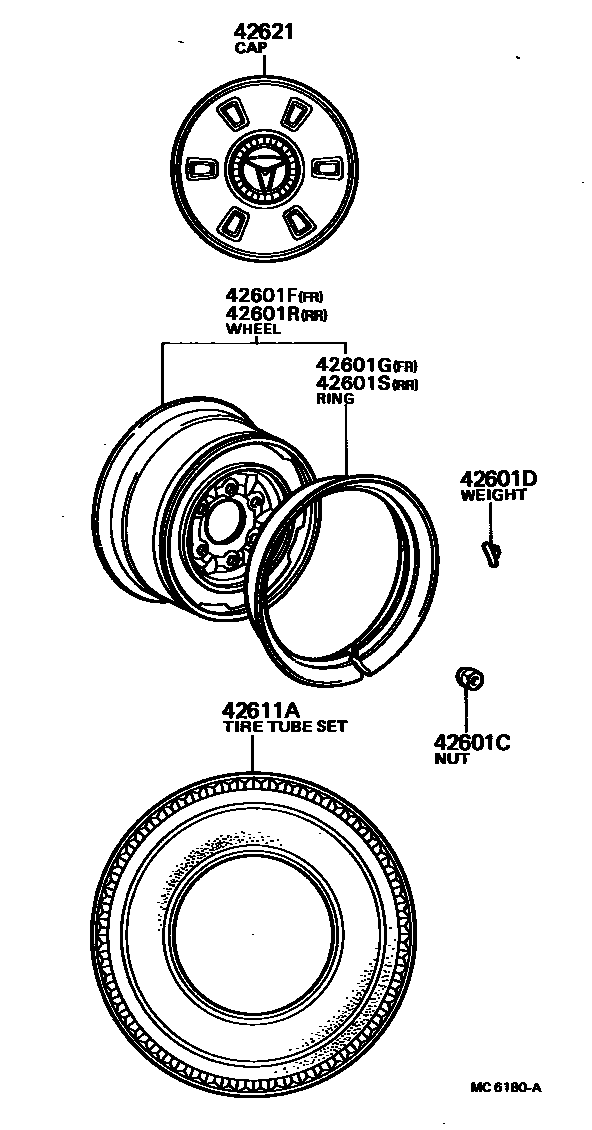

DISC WHEEL & WHEEL CAP

42601CNUT, HUB (FOR AXLE)

main90942-01004×24iRK11#..TW;RK11#..175197903-198507

main90942-01012×12iRK11#..20T197903-198603

RH

main90942-01013×12iRK11#..20T197903-198603

LH

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03045iRK11#197903-198603

main90942-03047iRK11#197903-198603

main90942-03049iRK11#197903-198603

main90942-03050iRK11#197903-198603

main90942-03051iRK11#197903-198603

main90942-03052iRK11#197903-198603

main90942-03053iRK11#197903-198603

main90942-03064iRK11#197903-198603

main90942-03106iRK11#197903-198603

42601FWHEEL, DISC (FOR FRONT)

main42610-35020×2iRK11#..TW;RK11#..175197903-198507

main42610-36140×2iRK11#..20T197903-198603

42601GRING, DISC WHEEL SIDE (FOR FRONT)

main42613-35010×2iRK11#197903-198603

42601RWHEEL, DISC (FOR REAR)

main42610-35020×2iRK11#..TW;RK11#..175197903-198507

main42610-36160×2iRK11#..20T197903-198603

42601SRING, DISC WHEEL SIDE (FOR REAR)

main42613-35010×2iRK11#..TW;RK11#..175197903-198507

main42613-35020×2iRK11#..20T197903-198603

42611ATIRE TUBE SET OR TUBELESS TIRE

main98061-70153×2iRK11#197903-198603

FR,7.00-15-6P

main98061-70155×2iRK11#..TW197903-198603

RR,7.00-15-10P

main98061-75155×2iRK11#..175197903-198507

RR,7.50-15-10P

main98061-75157×2iRK11#..20T197903-198603

RR,7.50-15-14P

42621CAP, WHEEL

main42621-36110×4iRK11#197903-198603

8 parts on this diagram · 1 diagram in section
