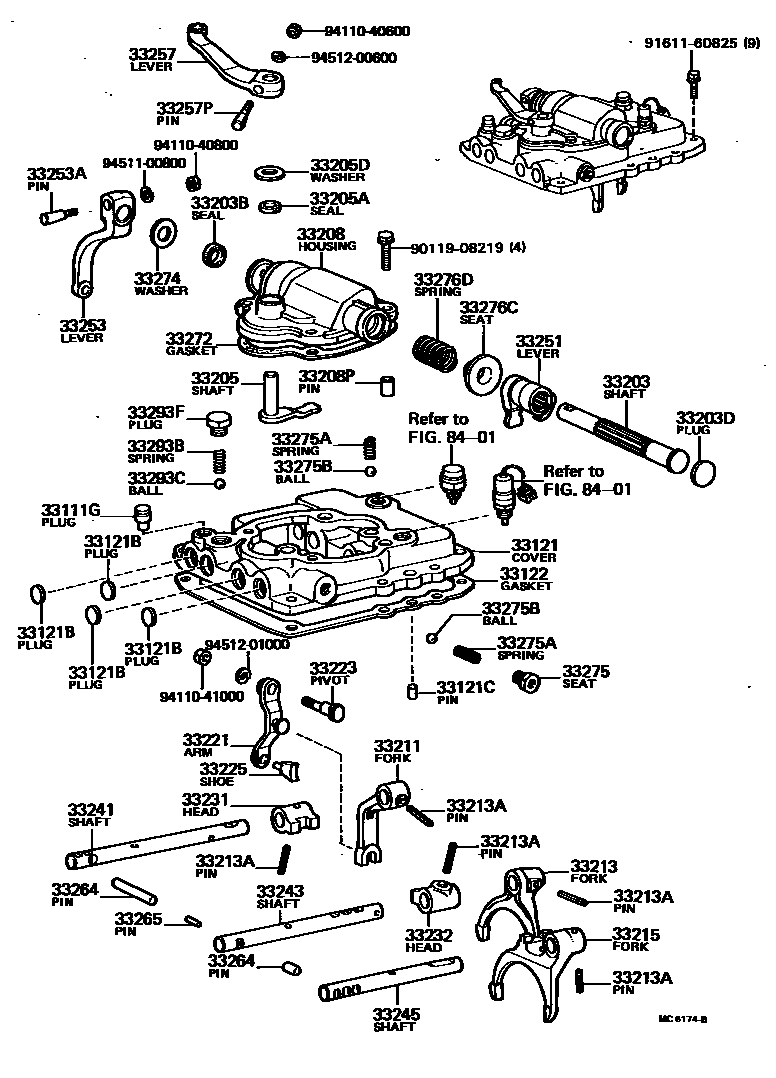

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33121COVER, MANUAL TRANSMISSION CASE
33121BPLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER)
33121CPIN(FOR TRANSMISSION CASE COVER)
33122GASKET, MANUAL TRANSMISSION CASE COVER
33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1
33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)
33203DPLUG, TIGHT(FOR SHIFT LEVER SHAFT)
33205SHAFT SUB-ASSY, SELECT LEVER
33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
33205DWASHER(FOR OUTER LEVER OIL SETTING)
sub90201-13012
33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT
33208PPIN, RING(FOR SHIFT LEVER SHAFT HOUSING)
33211FORK, REVERSE SHIFT
33213FORK, 1ST & 2ND SHIFT
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33215FORK, 3RD & 4TH SHIFT
33221ARM, REVERSE SHIFT
sub33201-25011
33223PIVOT, SHIFT ARM
sub33223-35012
33225SHOE, SHIFT ARM
sub33225-36011
33231HEAD, REVERSE SHIFT
33232HEAD, 1ST & 2ND SHIFT
33241SHAFT, REVERSE SHIFT FORK
33243SHAFT, 1ST & 2ND SHIFT FORK
33245SHAFT, 3RD & 4TH SHIFT FORK
33251LEVER, SHIFT & SELECT
33253LEVER, SHIFT OUTER, NO.1
33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
33257LEVER, SELECT OUTER
33257PPIN, SELECT OUTER LEVER LOCK
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=15,OD=9.5
L=38.9,OD=9.5
33272GASKET, SHIFT LEVER SHAFT HOUSING
33274WASHER, SHIFT LEVER SHAFT HOUSING, NO.2
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
sub90501-16115
33275BBALL, SHAFT DETENT
33276CSEAT, SELECT SPRING
33276DSPRING, COMPRESSION (FOR SELECT LEVER SHAFT)
33293BSPRING, COMPRESSION (FOR REVERSE RESTRICT BALL)
sub90501-16115
33293CBALL (FOR REVERSE RESTRICT)
33293FPLUG (FOR REVERSE RESTRICT BALL HOLDER)
8401
9011908219
main90119-08219
9161160825
main91611-60825
9411040600
main94110-40600
9411040800
main94110-40800
9411041000
main94110-41000
9451100800
main94511-00800
9451200600
main94512-00600
9451201000
main94512-01000
51 parts on this diagram · 1 diagram in section
