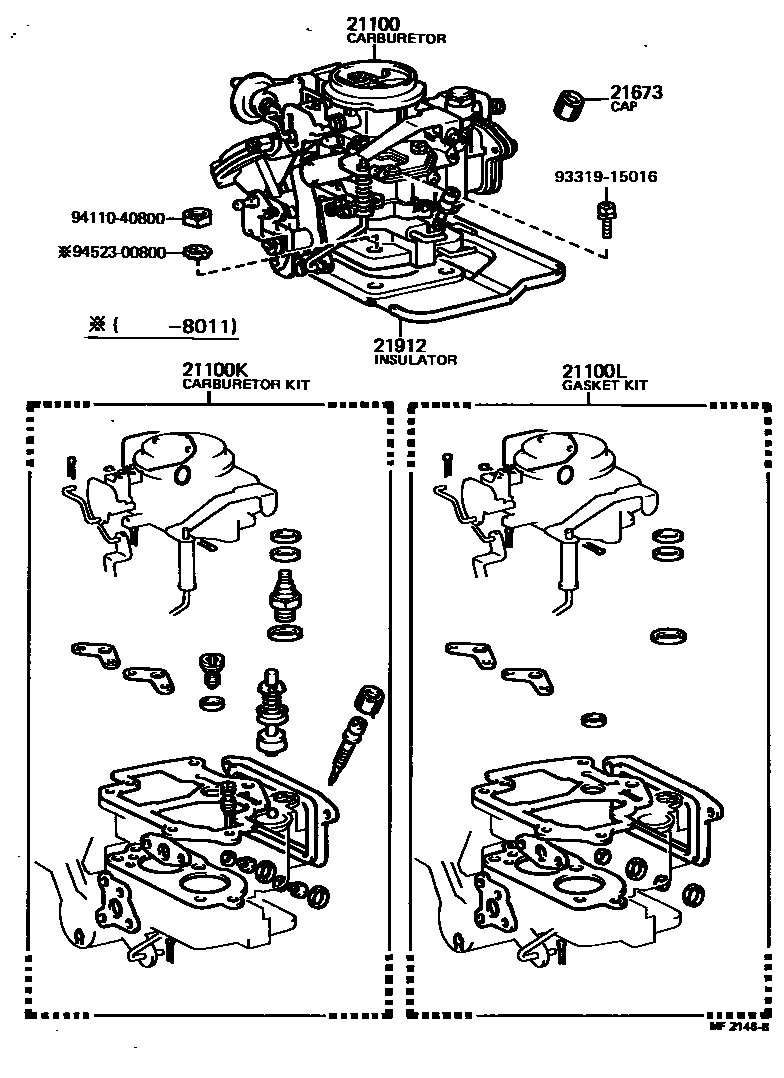

CARBURETOR ASSEMBLY

21100CARBURETOR ASSY

main21100-44350i5R..RK110197903-198201

main21100-44430i5R..RK111198201-198603

21100KCARBURETOR KIT

main04211-44090i5R..RK110197903-198201

main04211-44140i5R..RK111198201-198603

21100LGASKET KIT, CARBURETOR

main04212-44040i5R..RK11#197903-198603

21673CAP, IDLE LIMIT

main21673-38020i5R..RK11#197903-198603

21912INSULATOR, CARBURETOR HEAT

main21912-44030i5R..RK110197903-198012

main21912-44040i5R..RK11#198012-198603

9331915016

main93319-15016

9411040800

main94110-40800

9452300800

main94523-00800

8 parts on this diagram · 1 diagram in section
