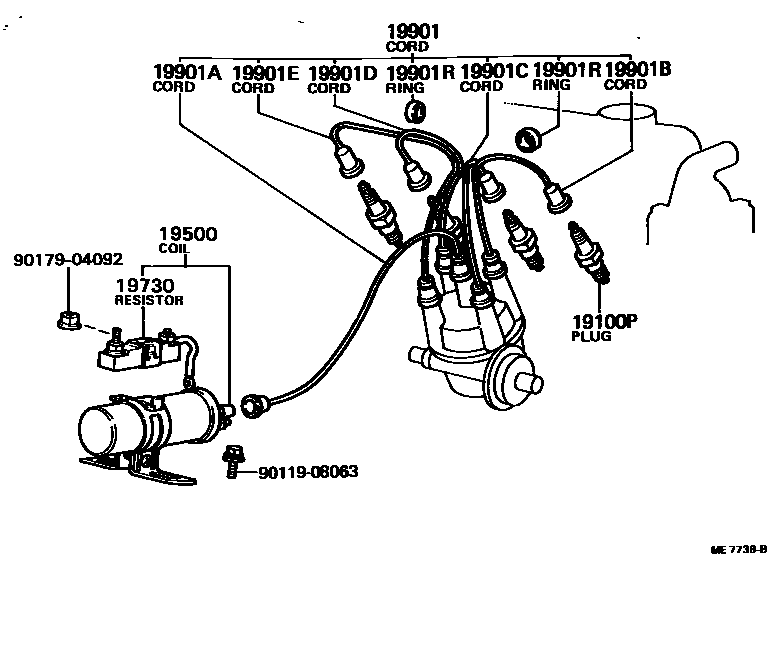

IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01059×4i5R..RK11#197903-198603

19500COIL ASSY, IGNITION

main90919-02098i5R..RK11#197903-198603

19730RESISTOR, IGNITION COIL

main90919-04027i5R..RK11#197903-198603

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21103i5R..RK110197903-197904

main90919-21223i5R..RK11#197904-198603

19901ACORD, COIL RESISTIVE

main90919-13033i5R..RK110197903-197904

main90919-13128i5R..RK11#197904-198603

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12146i5R..RK110197903-197904

main90919-12311i5R..RK11#197904-198603

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12145i5R..RK110197903-197904

main90919-12310i5R..RK11#197904-198603

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12145i5R..RK110197903-197904

main90919-12310i5R..RK11#197904-198603

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12146i5R..RK110197903-197904

main90919-12311i5R..RK11#197904-198603

19901RRING, RUBBER SPARK PLUG RESISTIVE CORD

main90202-11067×2i5R..RK11#197903-198603

9011908063

main90119-08063

9017904092

main90179-04092

12 parts on this diagram · 1 diagram in section
