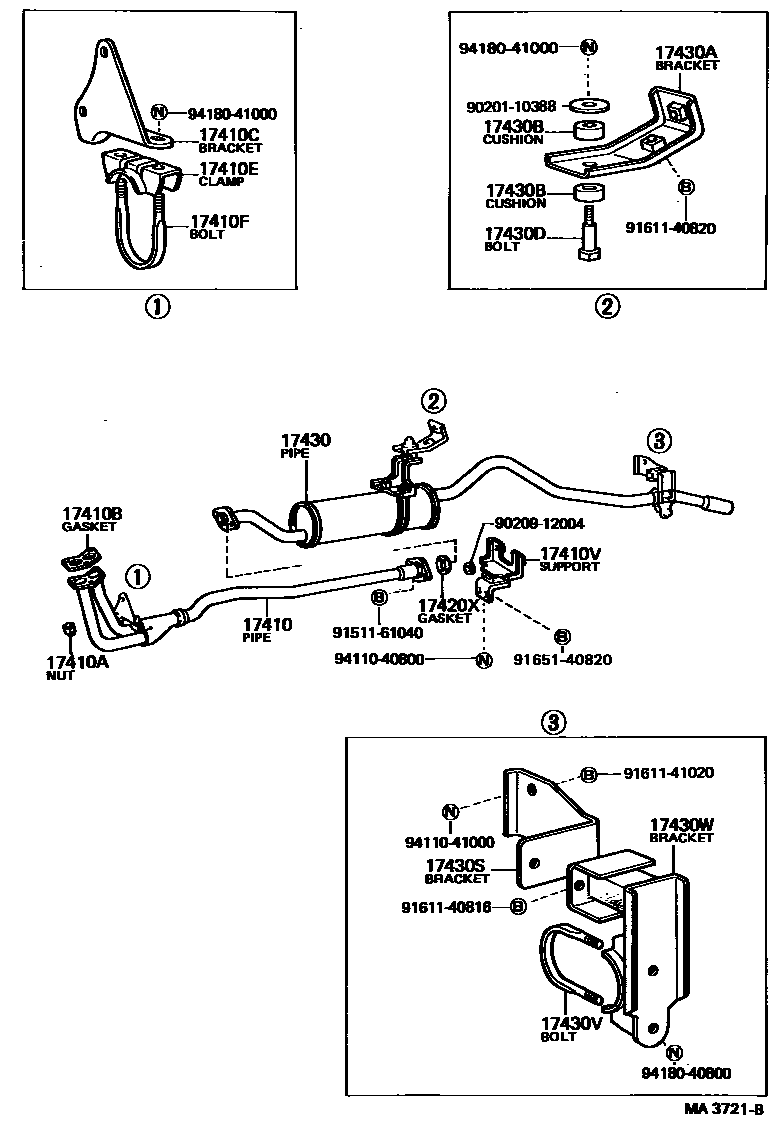

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-44220i5R..RK11#197903-198603

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10118×3i5R..RK11#197903-198603

17410BGASKET, EXHAUST PIPE

main17451-41010i5R..RK11#197903-198603

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-44080i5R..RK11#197903-198603

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main90917-04045i5R..RK11#197903-198603

17410FBOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)

main90117-10009i5R..RK11#197903-198603

17410VBRACKET, EXHAUST PIPE FRONT (FOR REAR)

main17562-44010i5R..RK11#197903-198603

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06012i5R..RK11#197903-198603

17430PIPE ASSY, EXHAUST, TAIL

main17430-44190i5R..RK11#197903-198603

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17573-44060i5R..RK11#197903-198603

17430BCUSHION, EXHAUST TAILPIPE(FOR FRONT)

main90540-14001×2i5R..RK11#197903-198310

main90540-14002×2i5R..RK111198310-198603

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main37236-36020i5R..RK11#197903-198603

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17574-44050i5R..RK11#197903-198603

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main90117-08205i5R..RK11#197903-198603

17430WCLAMP NO.2, EXHAUST TAILPIPE (FOR REAR)

main17506-44020i5R..RK11#197903-198603

9020110388

main90201-10388

9020912004

main90209-12004

9151161040

main91511-61040

9161140816

main91611-40816

9161140820

main91611-40820

9161141020

main91611-41020

9165140820

main91651-40820

9411040800

main94110-40800

9411041000

main94110-41000

9418040800

main94180-40800

9418041000

main94180-41000

26 parts on this diagram · 1 diagram in section
