Toyota STOUT — MANIFOLD

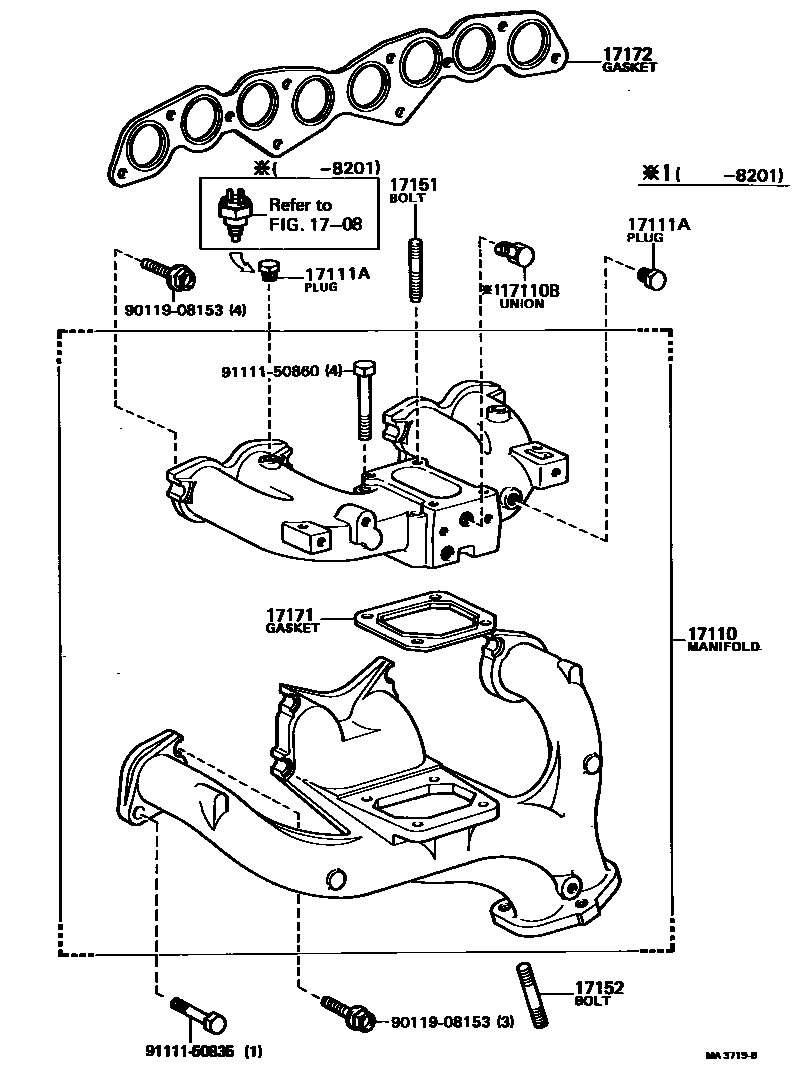

Parts diagram

1708VACUUM PIPING

→ Go to FIG 17-08

17110MANIFOLD ASSY

17110BUNION(FOR VENTILATION HOSE TO MANIFOLD)

17111APLUG, NO.1

17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

17171GASKET, INTAKE TO EXHAUST MANIFOLD

17172GASKET, MANIFOLD TO CYLINDER HEAD

9011908153

9111150835

9111150860

11 parts on this diagram · 1 diagram in section

MANIFOLD for Toyota STOUT

This section contains 11 genuine Toyota parts for the MANIFOLD system of the Toyota STOUT. Key components include: VACUUM PIPING, MANIFOLD ASSY, UNION(FOR VENTILATION HOSE TO MANIFOLD), PLUG, NO.1, BOLT, STUD(FOR MANIFOLD TO CARBURETOR).
