MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-44020i5R..RK11#197903-198603

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12312-44010i5R..RK11#197903-198603

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-44050i5R..RK11#197903-198603

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-44060×2i5R..RK11#198103-198603

main12361-49115i5R..RK110197903-198103

RH

main12362-49055i5R..RK110197903-198103

LH

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-49015×2i5R..RK11#197903-198603

12393INSULATOR, ENGINE MOUNTING HEAT, FRONT

main12391-44010i5R..RK11#197903-198603

12511BRACKET, ALTERNATOR, NO.1

main12511-40012i5R..RK11#197903-198603

12V 30A

main12511-40020i5R..RK11#197903-198603

12V 40A

9011912053

main90119-12053

9020110152

main90201-10152

9020112033

main90201-12033

9116151225

main91161-51225

9161160825

main91611-60825

9161161016

main91611-61016

9411051000

main94110-51000

9411541200

main94115-41200

9451201000

main94512-01000

9451201200

main94512-01200

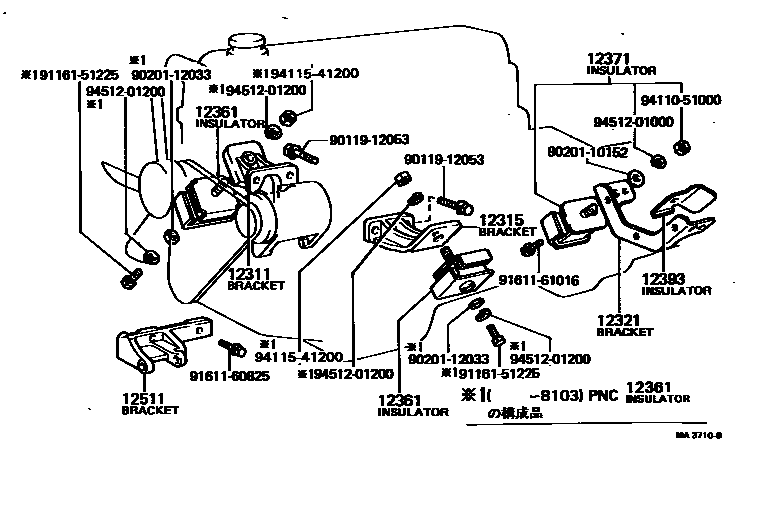

17 parts on this diagram · 1 diagram in section
