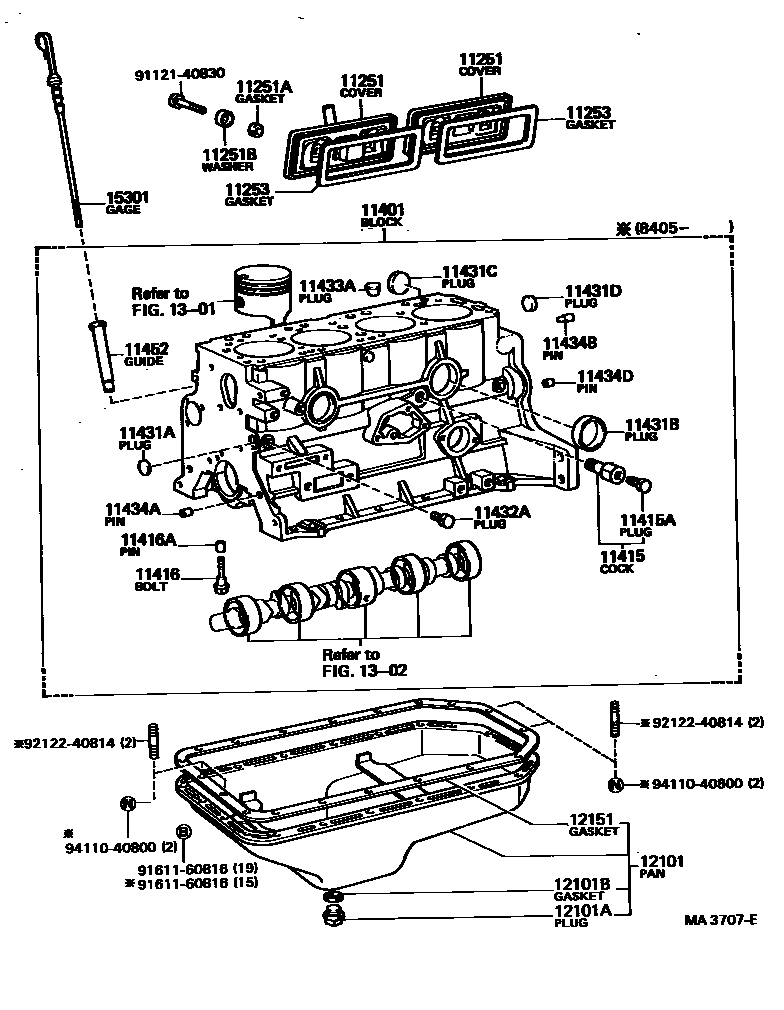

CYLINDER BLOCK

11251COVER, VALVE PUSH ROD

main11204-44010i5R..RK11#197903-198603

FR

main11251-44010i5R..RK11#197903-198603

RR

11251AGASKET(FOR VALVE PUSH ROD COVER BOLT)

main90430-07121×4i5R..RK11#197903-198603

11251BWASHER, SEAL(FOR VALVE PUSH ROD COVER BOLT)

main90210-08006×4i5R..RK11#197903-198603

11253GASKET, VALVE PUSH ROD COVER

main11253-40010×2i5R..RK11#197903-198603

11401BLOCK SUB-ASSY, CYLINDER

main11401-49227i5R..RK11#197903-198603

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09056i5R..RK110197903-197905

main90910-09070i5R..RK111198407-198505

main96431-03833i5R..RK11#197905-198407

main96431-53828i5R..RK111198505-198603

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09072i5R..RK111198407-198505

main96431-23814i5R..RK11#197903-198407

main96432-23814i5R..RK111198505-198603

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02038×6i5R..RK11#197903-198512

*12-1.25PX67-21

main90910-02047×6i5R..RK111198512-198603

*12-1.25PX67-21

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-16014×6i5R..RK11#197903-198603

L=10,OD=15.5

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90330-21012×2i5R..RK11#197903-198603

OD=21

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-45000×3i5R..RK11#197903-198603

OD=50

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main90331-27041×2i5R..RK11#197903-198603

OD=27

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main96411-43000i5R..RK11#197903-198603

OD=30

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-51006×2i5R..RK111198210-198603

main90345-51025×2i5R..RK11#197903-198210

11433APLUG, STRAIGHT, NO.1

main90334-10009i5R..RK11#197903-198603

L=6.5,OD=9.5

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90253-11001×2i5R..RK11#197903-198603

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10052×2i5R..RK11#197903-198603

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90253-11001×2i5R..RK11#197903-198603

11452GUIDE, OIL LEVEL GAGE

main11452-44020i5R..RK110197903-198004

main11452-44030i5R..RK11#198004-198603

12101PAN SUB-ASSY, OIL

main12101-49255i5R..RK11#197903-198603

12101APLUG(FOR OIL PAN DRAIN)

main90341-18089i5R..RK11#197903-198603

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-18244i5R..RK11#197903-198603

12151GASKET, OIL PAN

main12151-44010i5R..RK11#197903-198603

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

15301GAGE SUB-ASSY, OIL LEVEL

main15301-44070i5R..RK110197903-198004

main15301-44110i5R..RK11#198004-198603

9112140830

main91121-40830

9161160816

main91611-60816

9212240814

main92122-40814

9411040800

main94110-40800
