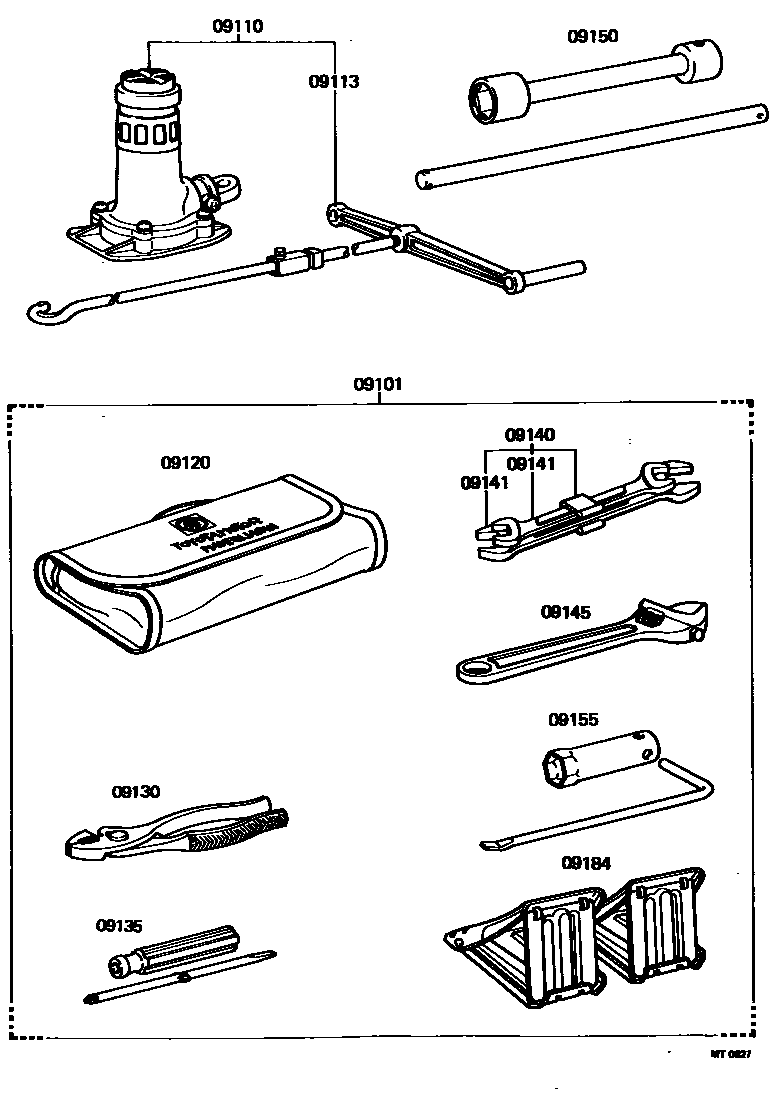

STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09102-25051iRK111198205-198603

main09102-35010iRK11#197903-198205

09110JACK ASSY

main09110-35100iRK110197903-198008

main09110-35101iRK11#198008-198603

09113HANDLE, JACK

main09113-35100iRK11#197903-198603

09120BAG, TOOL

main09120-36020iRK11#197903-198603

09130PLIERS

main09130-00010iRK11#197903-198205

main99913-11500iRK111198205-198603

09135DRIVER, SCREW

main99915-10700iRK11#197903-198603

09140SPANNER SET

main09140-27010iRK11#197903-198603

09141SPANNER

main99914-11012iRK11#197903-198603

main99914-11417iRK11#197903-198603

09145WRENCH, MONKEY

main99911-10200iRK11#197903-198603

09150WRENCH, HUB NUT BOX

main09150-25010iRK11#..TW;RK11#..175197903-198507

main09150-25020iRK11#..20T197903-198603

09155WRENCH, SPARK PLUG

main09155-44020iRK11#197903-198603

09184STOPPER, WHEEL

main09184-00031×2iRK11#197903-198603

12 parts on this diagram · 1 diagram in section
