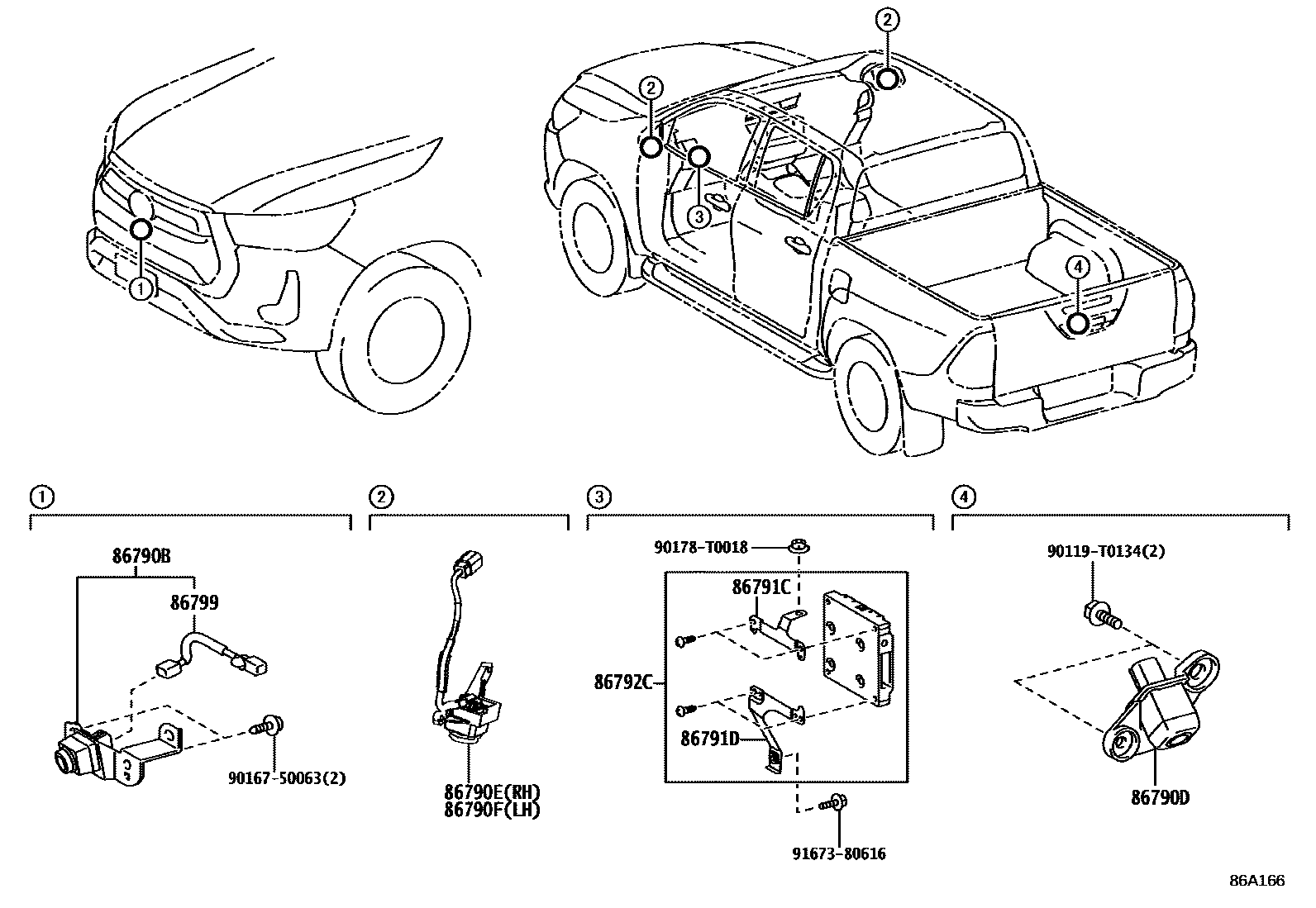

CAMERA & REAR MONITOR DISPLAY
86790BCAMERA ASSY, TELEVISION, FR
86790DCAMERA ASSY, TELEVISION, RR
86790ECAMERA ASSY, TELEVISION, SIDE RH
86790FCAMERA ASSY, TELEVISION, SIDE LH
86791CBRACKET, COMPUTER PARKING ASSIST, NO.1
86791DBRACKET, COMPUTER PARKING ASSIST, NO.2
86792CCOMPUTER, PARKING ASSIST
86799WIRE, TELEVISION CAMERA
90119T0134
main90119-T0134
9016750063
main90167-50063
90178T0018
main90178-T0018
9167380616
main91673-80616
12 parts on this diagram · 1 diagram in section
