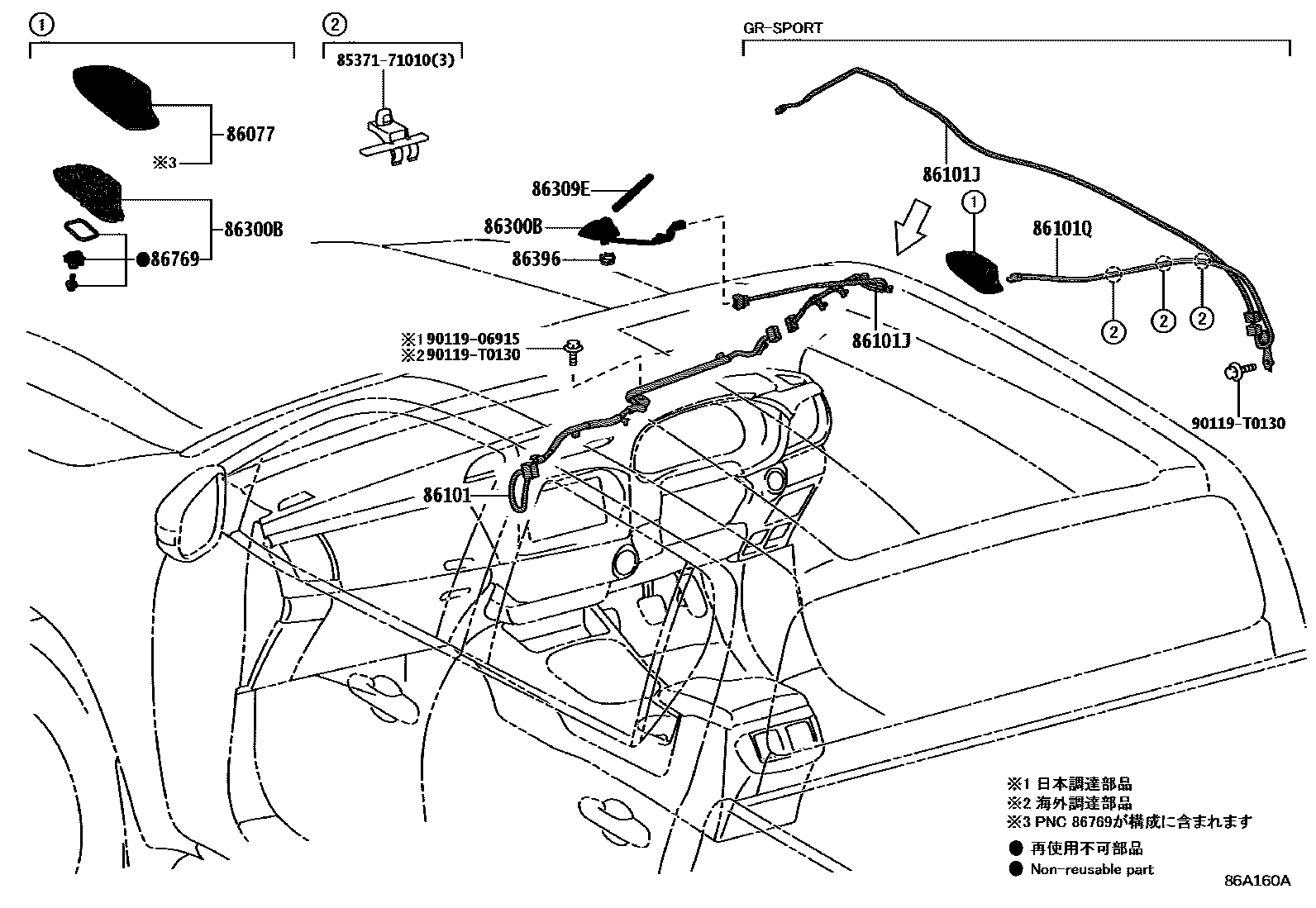

ANTENNA

86077COVER KIT, ANTENNA

main86077-0D010-A0iGUN125202308-202407

main86077-0D010-A2iGUN125202308-202407

main86077-0D010-C2iGUN125202308-202407

86101CORD SUB-ASSY, ANTENNA

main86101-0KG81iGUN125202308-202407

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0KN20supersedes 86101-0K711iGUN125202308-202407

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-0KN40iGUN125202308-202407

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-0K130supersedes 86300-0K300iGUN125202308-202407

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-0K010iGUN125202308-202407

86396NUT, ANTENNA

main86396-47010iGUN125202308-202407

86769HOUSING, ROOF ANTENNA

main86769-12010iGUN125202308-202407

8537171010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-71010

9011906915

main90119-06915

90119T0130

main90119-T0130

11 parts on this diagram · 1 diagram in section
