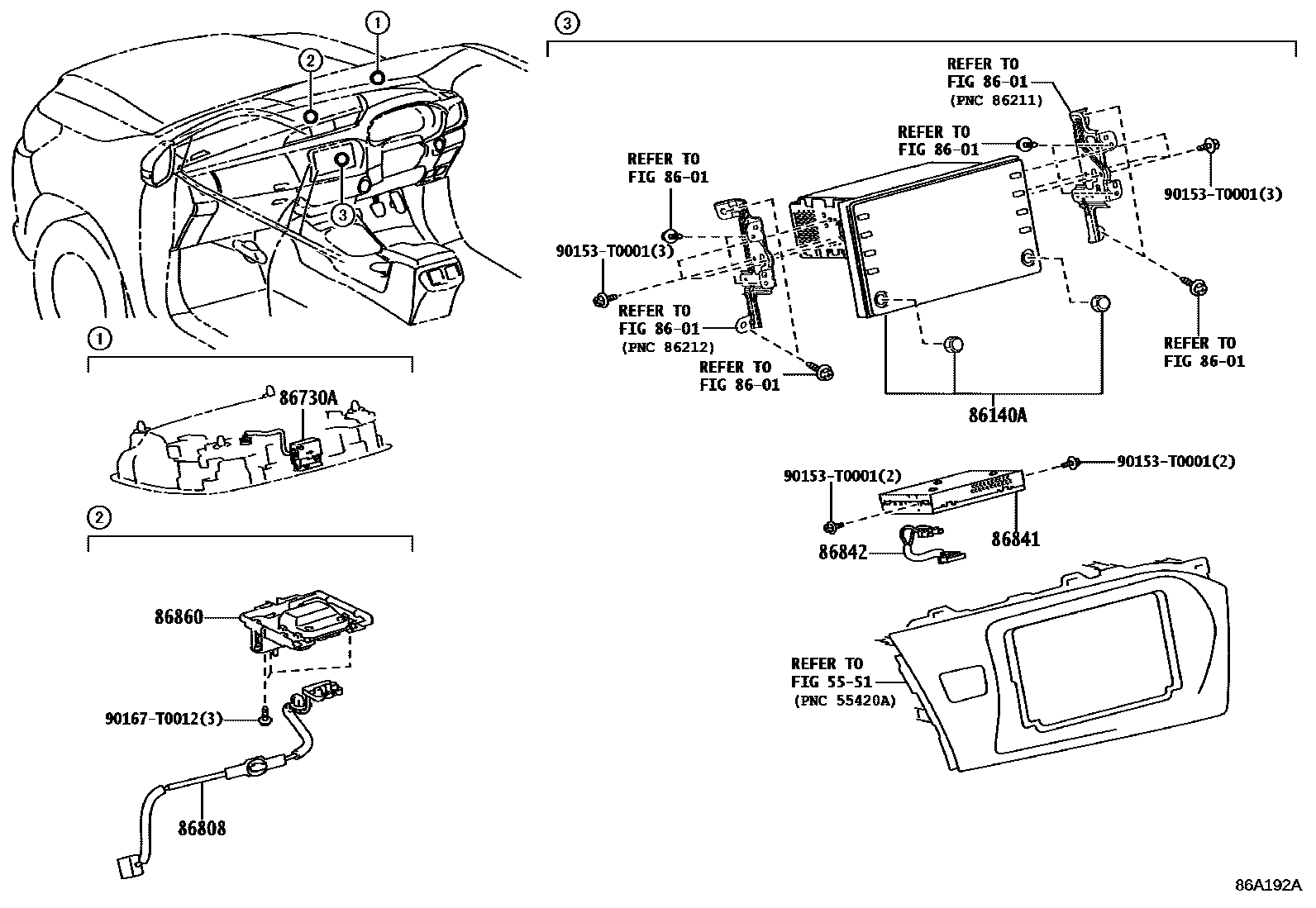

NAVIGATION & FRONT MONITOR DISPLAY

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-71030iGUN125202308-202407

86730AMICROPHONE ASSY, TELEPHONE

main86730-20060iGUN125202308-202407

86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1

main86808-0K051iGUN125202308-202407

86841COMPUTER, NAVIGATION

main86840-33225iGUN125202308-202309

main86840-33226iGUN125202310-202403

main86840-33227iGUN125202404-202407

86842WIRE, NAVIGATION, NO.1

main86842-33150iGUN125202308-202407

86860ANTENNA ASSY, NAVIGATION

main86860-0K040iGUN125202308-202407

90153T0001

main90153-T0001

90167T0012

main90167-T0012

10 parts on this diagram · 1 diagram in section
