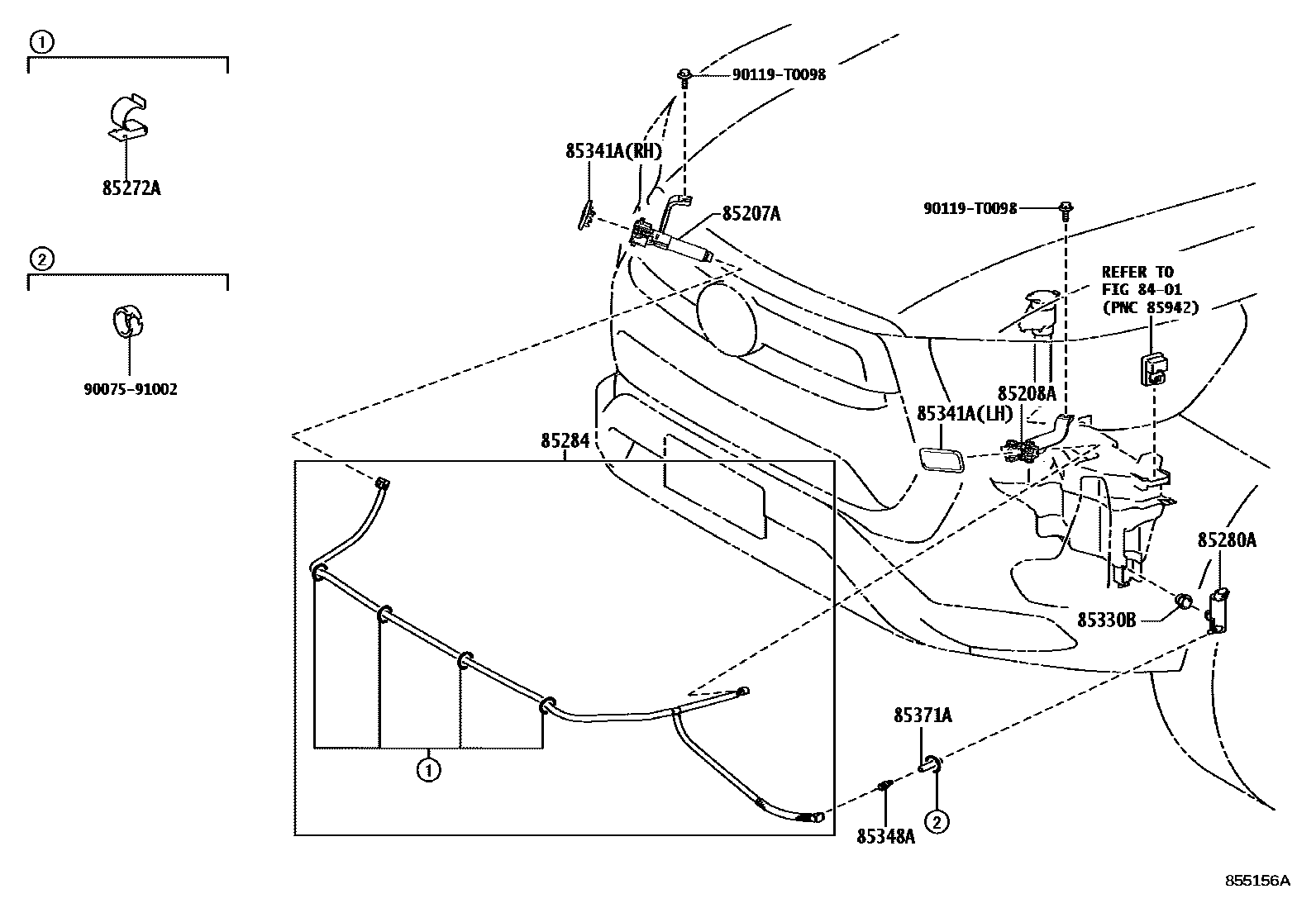

HEADLAMP CLEANER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

main85207-0K050iGUN125202308-202407

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

main85208-0K050iGUN125202308-202407

85272ACLAMP, HEADLAMP CLEANER, NO.1

main90075-90512×4iGUN125202308-202407

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

main85280-33030iGUN125202308-202407

85284HOSE ASSY, HEADLAMP CLEANER WASHER

main85271-0K050iGUN125202308-202407

85330BBUSH, HEADLAMP CLEANER WASHER JAR

main90099-32089iGUN125202308-202407

85341ACOVER,HEADLAMP CLEANER WASHER NOZZLE

main85044-0K140-A0supersedes 85045-0K140-A0iGUN125202308-202407

main85044-0K140-A2supersedes 85045-0K140-A2iGUN125202308-202407

main85044-0K140-B2supersedes 85045-0K140-B2iGUN125202308-202407

main85044-0K140-C0supersedes 85045-0K140-C0iGUN125202308-202407

main85044-0K140-G0supersedes 85045-0K140-G0iGUN125202308-202407

main85044-0K140-J1supersedes 85045-0K140-J1iGUN125202308-202407

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main90075-17012iGUN125202308-202407

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

main90075-15053iGUN125202308-202407

9007591002

main90075-91002

90119T0098

main90119-T0098

12 parts on this diagram · 1 diagram in section
