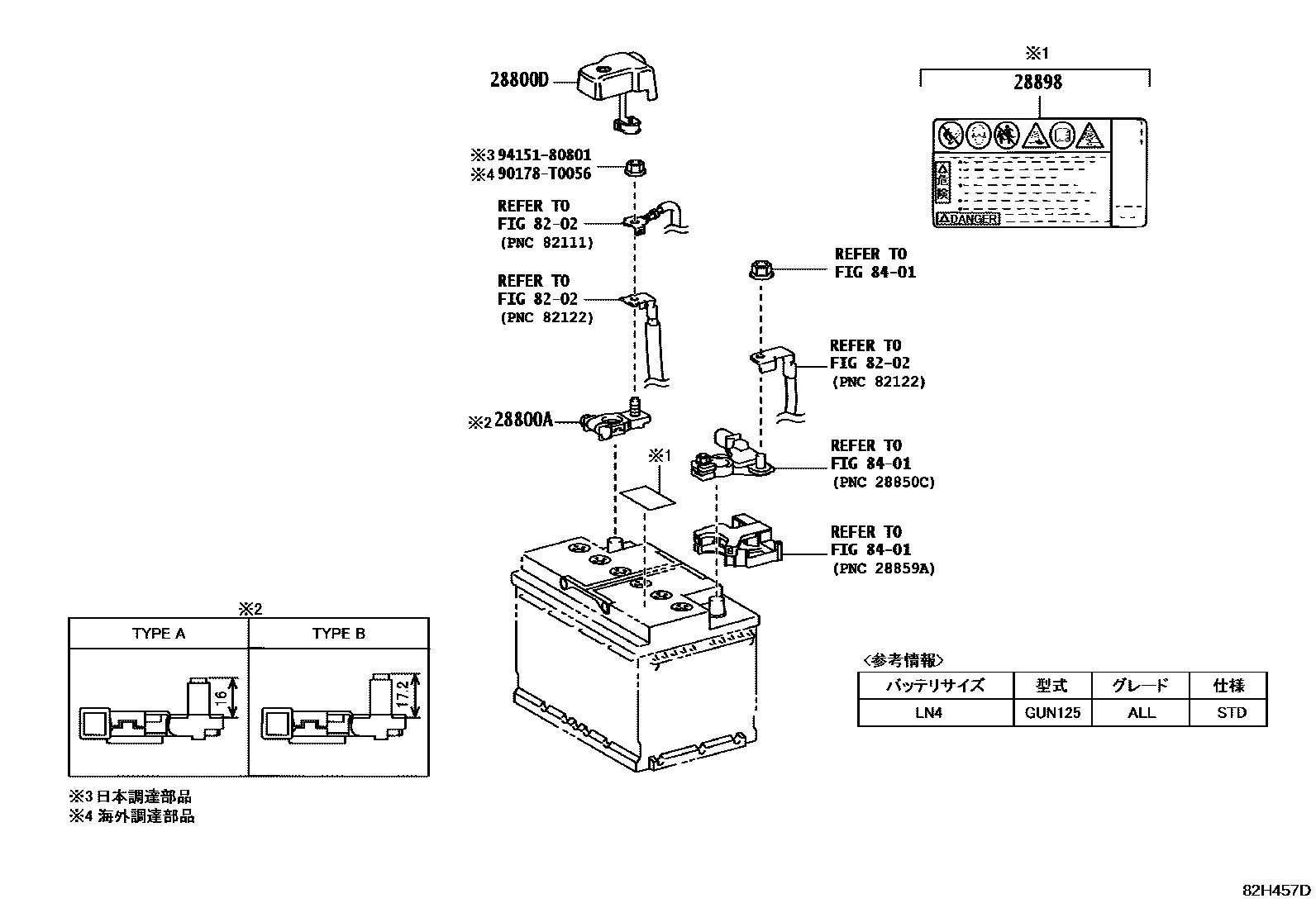

BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2GDFTV..GUN125202308-202407

main90982-05061i2GDFTV..GUN125202308-202407

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33350i2GDFTV..GUN125202308-202407

28898PLATE, BATTERY

main28897-24040i2GDFTV..GUN125202310-202407

main28897-50020i2GDFTV..GUN125202308-202309

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90178T0056

main90178-T0056

9415180801

main94151-80801

7 parts on this diagram · 1 diagram in section
