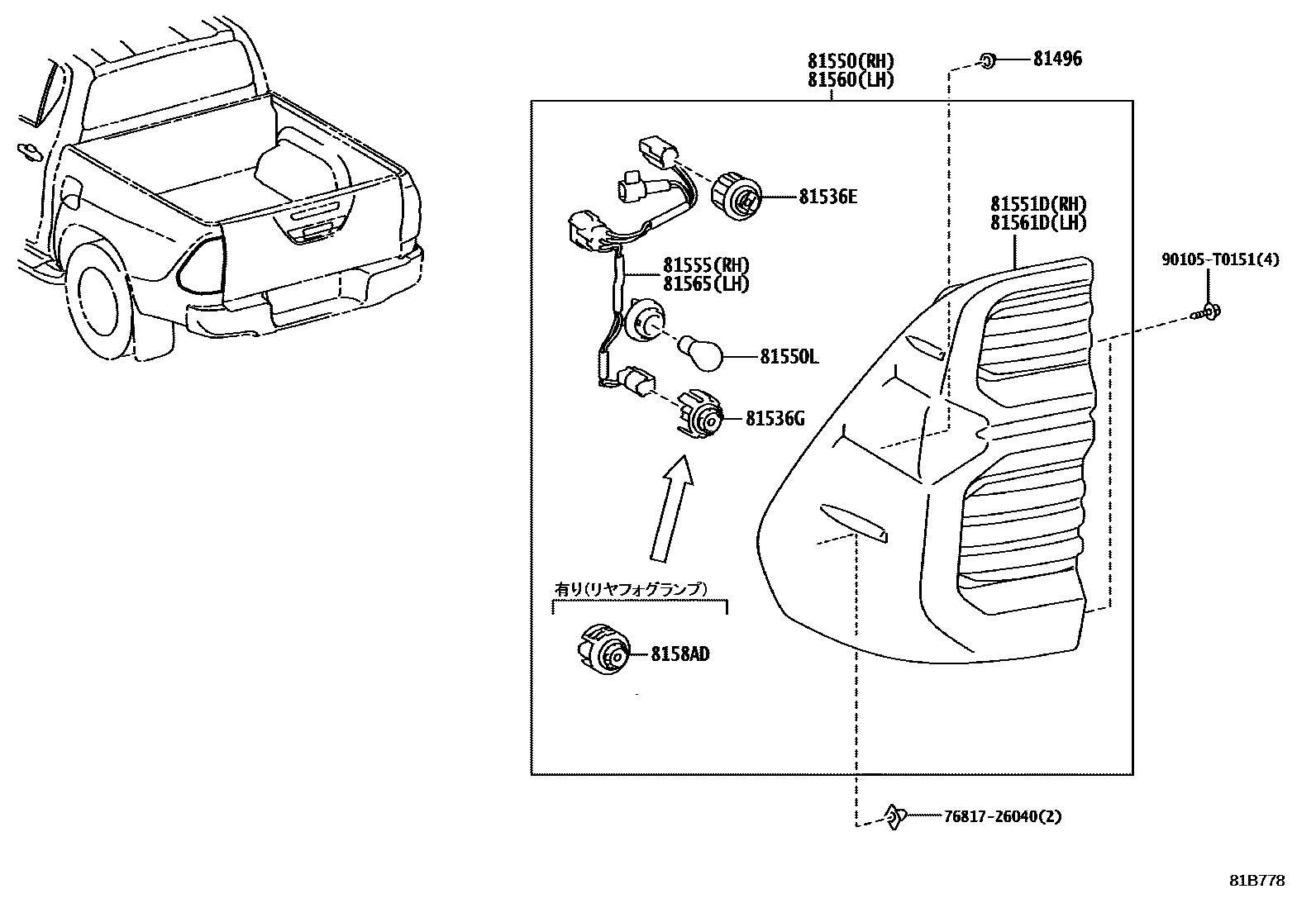

REAR COMBINATION LAMP

81496GUIDE, REAR COMBINATION LAMP

main81496-0D040×2iGUN125202308-202407

main81496-52020×2iGUN125202308-202407

81536ELED, STOP LAMP

main81536-15120×2iGUN125202308-202407

81536GLED, BACK-UP LAMP

main8158A-12260iGUN125202308-202407

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0K700iGUN125202308-202407

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15028×2iGUN125202308-202407

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0K700iGUN125202308-202407

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0K440iGUN125202308-202407

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0K690iGUN125202308-202407

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0K690iGUN125202308-202407

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0K430iGUN125202308-202407

8158ADLED, REAR FOG LAMP

main8158A-0D610iGUN125202308-202407

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040

90105T0151

main90105-T0151

13 parts on this diagram · 1 diagram in section
