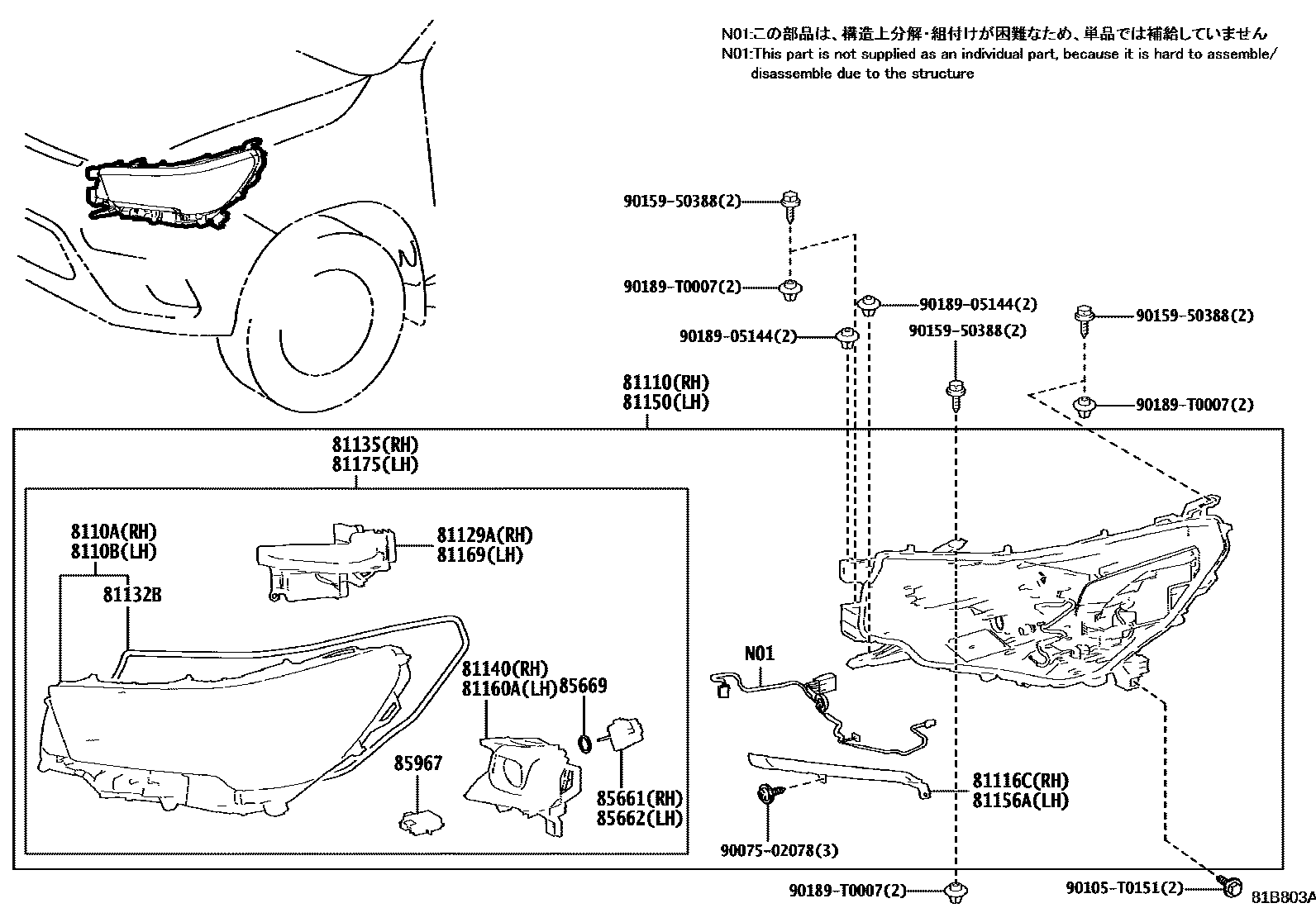

HEADLAMP
8110ALENS SUB-ASSY, HEADLAMP, RH
8110BLENS SUB-ASSY, HEADLAMP, LH
81110HEADLAMP ASSY, RH
81116CBRACKET, HEADLAMP, RH
81129AREFLECTOR, HEADLAMP, RH
81132BGASKET, HEADLAMP LENS
81135UNIT ASSY, HEADLAMP, RH
81140UNIT ASSY, HEADLAMP LED, RH
81150HEADLAMP ASSY, LH
81156ABRACKET, HEADLAMP, LH
81160AUNIT ASSY, HEADLAMP LED, LH
81169REFLECTOR, HEADLAMP, LH
81175UNIT ASSY, HEADLAMP, LH
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
85669PACKING, HEADLAMP LEVELING MOTOR BASE
85967COMPUTER, LIGHT CONTROL
9007502078
main90075-02078
90105T0151
main90105-T0151
9015950388
main90159-50388
9018905144
main90189-05144
90189T0007
main90189-T0007
22 parts on this diagram · 1 diagram in section
