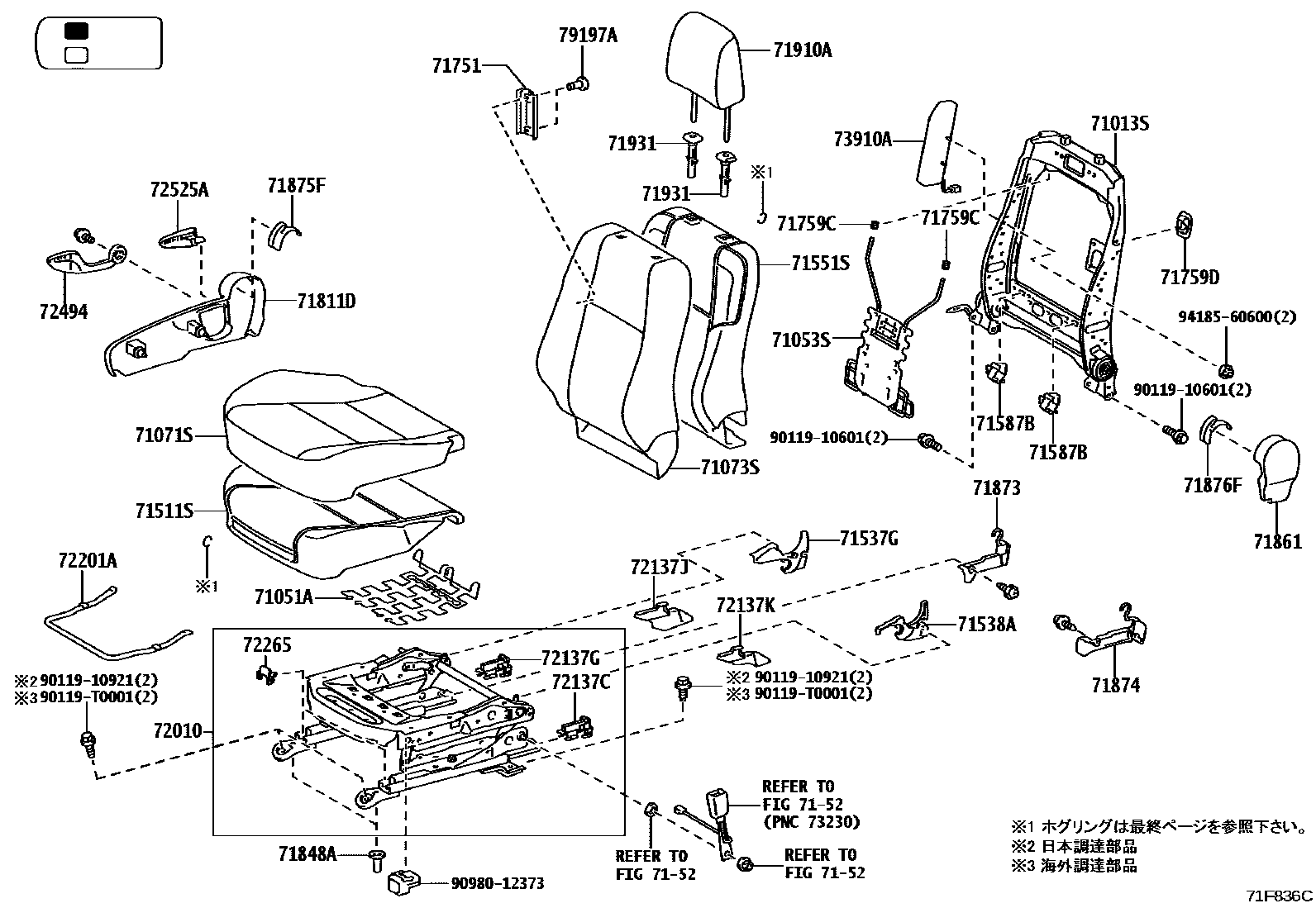

SEAT & SEAT TRACK
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71053SSPRING SUB-ASSY, FRONT SEATBACK, RH
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
7152SEAT BELT
71537GPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
BLACK,TRIM2#
71538APROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
BLACK,TRIM2#
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71587BPROTECTOR, FRONT SEATBACK EDGE
71751HANGER, SEAT COVER
71759CHOOK, FRONT SEATBACK, NO.1
71759DHOOK, FRONT SEATBACK, NO.2
BLACK,TRIM2#
71811DSHIELD, FRONT SEAT CUSHION, RH
71848ACAP, SEAT ADJUSTER COVER, RH
71861SHIELD, FRONT SEAT CUSHION, INNER RH
BLACK,TRIM2#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71910AHEADREST ASSY, FRONT SEAT
71931SUPPORT, FRONT SEAT HEADREST
72010ADJUSTER ASSY, FRONT SEAT, RH
72137CCOVER, SEAT TRACK INNER, RH
72137GCOVER, SEAT TRACK, OUTER RH
72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER
BLACK,TRIM2#
72137KCOVER, FRONT SEAT TRACK, RH REAR INNER
BLACK,TRIM2#
72201AHANDLE SUB-ASSY, SEAT TRACK RH
72265COVER, SEAT TRACK UPPER RAIL, RH
72494HANDLE, VERTICAL ADJUSTING, RH
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
73910AAIRBAG ASSY, FRONT SEAT, RH
79197ARIVET
9011910601
main90119-10601
9011910921
main90119-10921
90119T0001
main90119-T0001
9098012373
main90980-12373
9418560600
main94185-60600
39 parts on this diagram · 5 diagrams in section
