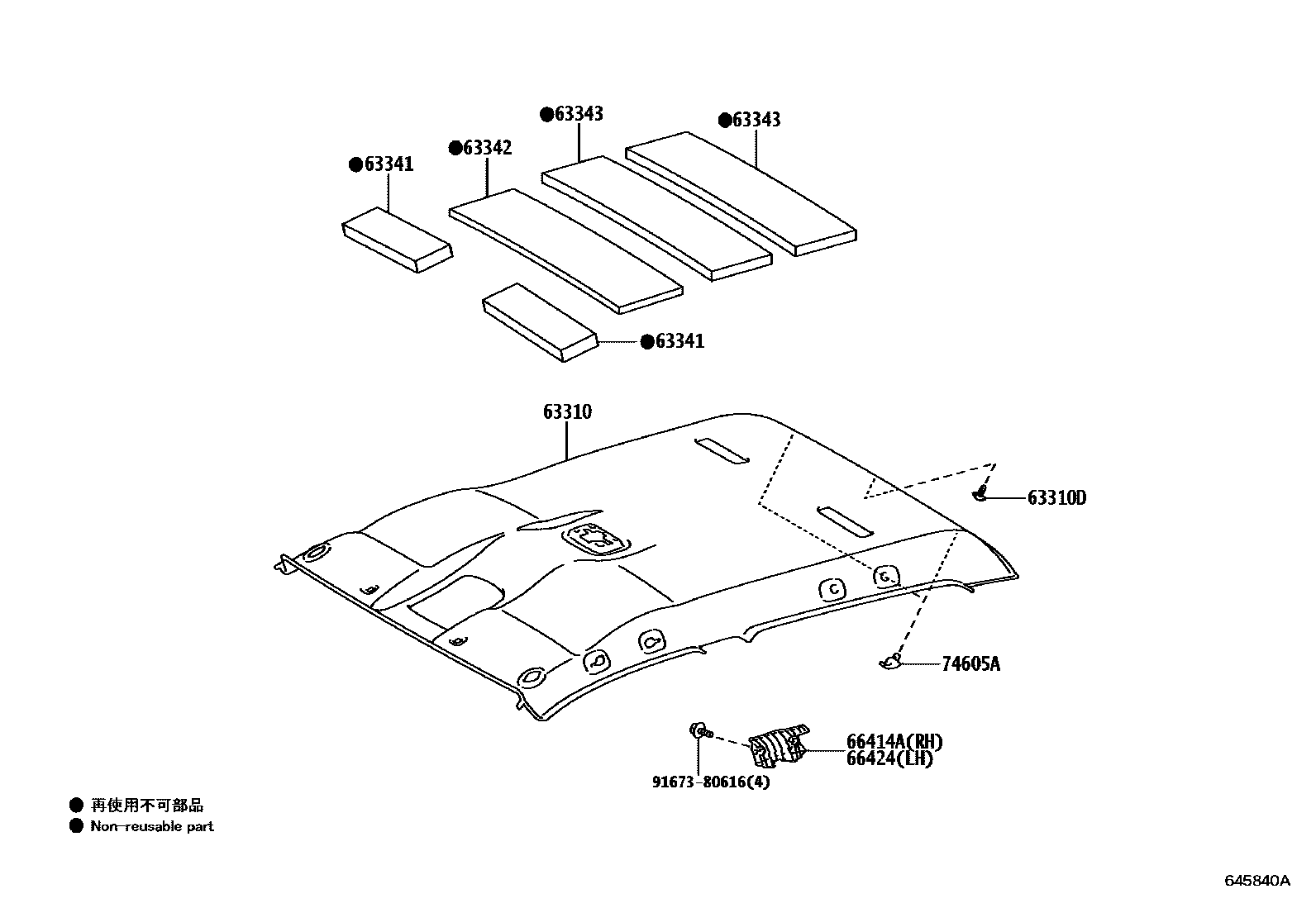

ROOF HEADLINING & SILENCER PAD

63310HEADLINING ASSY, ROOF

main63310-F0450-B0iGUN125202308-202407

LT. GRAY,TRIM20

main63310-F0450-C0iGUN125202308-202407

63310DCLIP, ROOF HEADLINING

main90467-T0004-B0iGUN125202308-202407

LT.GRAY,TRIM20

main90467-T0004-C1iGUN125202308-202407

BLACK,TRIM23,25

63341PAD, ROOF SILENCER, NO.1

main63342-0K230×2iGUN125202308-202407

63342PAD, ROOF SILENCER, NO.2

main63342-0K240iGUN125202308-202407

63343PAD, ROOF SILENCER, NO.3

main63342-0K460×2iGUN125202308-202407

66414ASPACER, SIDE RAIL, REAR RH

main66414-KK010iGUN125202308-202407

66424SPACER, SIDE RAIL, REAR LH

main66424-KK010iGUN125202308-202407

74605AHOOK SUB-ASSY, COAT

main74631-0K040-B0×2iGUN125202308-202407

LT.GRAY,TRIM20

main74631-0K040-C0×2iGUN125202308-202407

BLACK,TRIM23,25

9167380616

main91673-80616

9 parts on this diagram · 1 diagram in section
