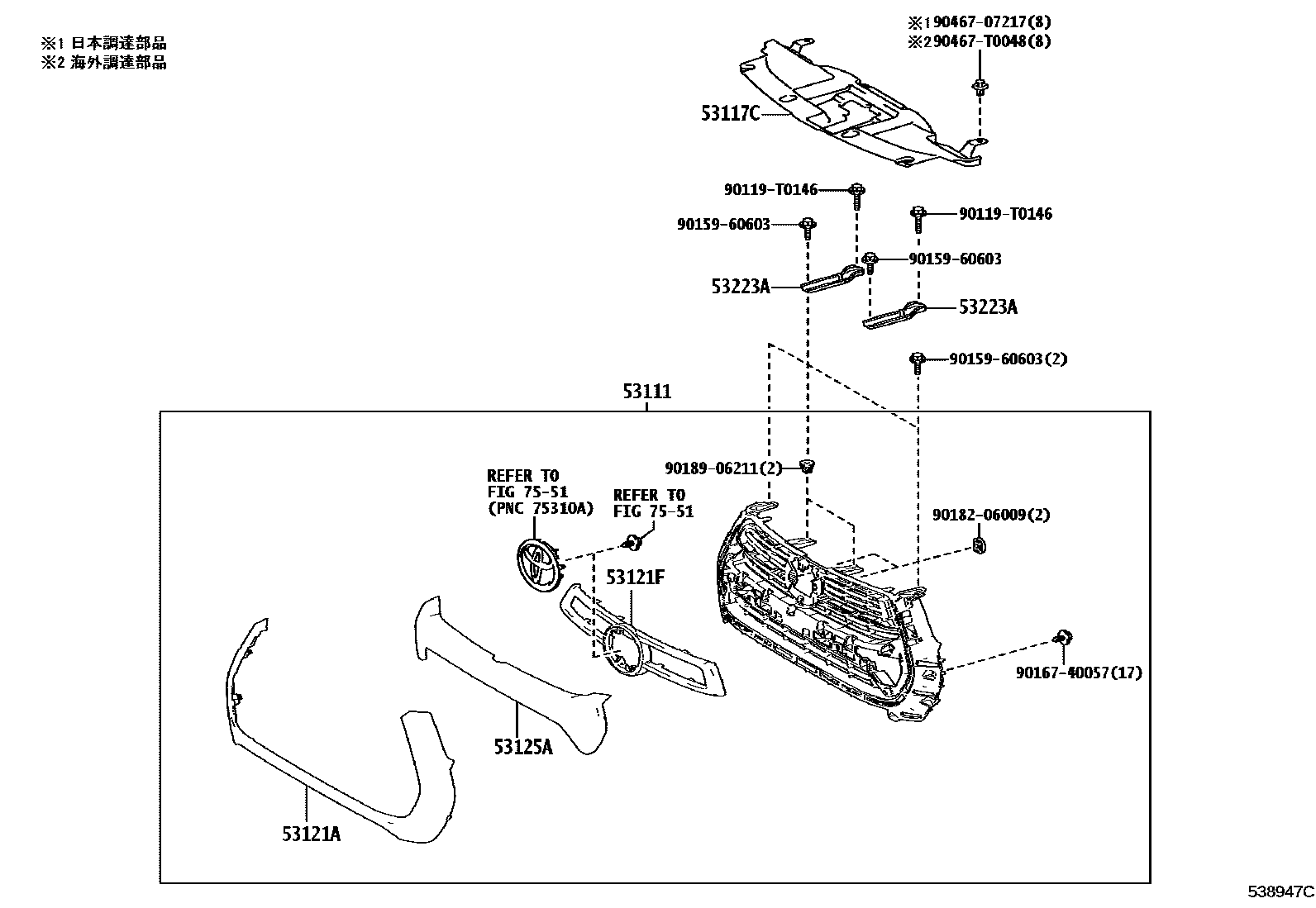

RADIATOR GRILLE

0001 1 0002 1GR SPORT 0003 1ROCCO JPN SPECIAL EDITION*(R)

53111GRILLE, RADIATOR

main53100-YP691supersedes 53100-0KW81iGUN125202403-202407

main53111-YP460supersedes 53100-0KW81iGUN125202308-202407

53117CRETAINER, RADIATOR GRILLE, NO.1

main53117-0K120iGUN125202308-202407

53121AMOULDING, RADIATOR GRILLE

main53121-YP160supersedes 53121-0K870iGUN125202403-202407

53121FMOULDING, RADIATOR GRILLE, UPPER RH

main53125-0K490iGUN125202308-202407

53125AMOULDING, RADIATOR GRILLE, CENTER RH

main53123-0K560iGUN125202308-202407

53223ABRACKET, RADIATOR GRILLE MOUNTING

main53115-0K080×2iGUN125202308-202407

7551EMBLEM & NAME PLATE

→ Go to FIG 75-51

90119T0146

main90119-T0146

9015960603

main90159-60603

9016740057

main90167-40057

9018206009

main90182-06009

9018906211

main90189-06211

9046707217

main90467-07217

90467T0048

main90467-T0048

14 parts on this diagram · 3 diagrams in section
