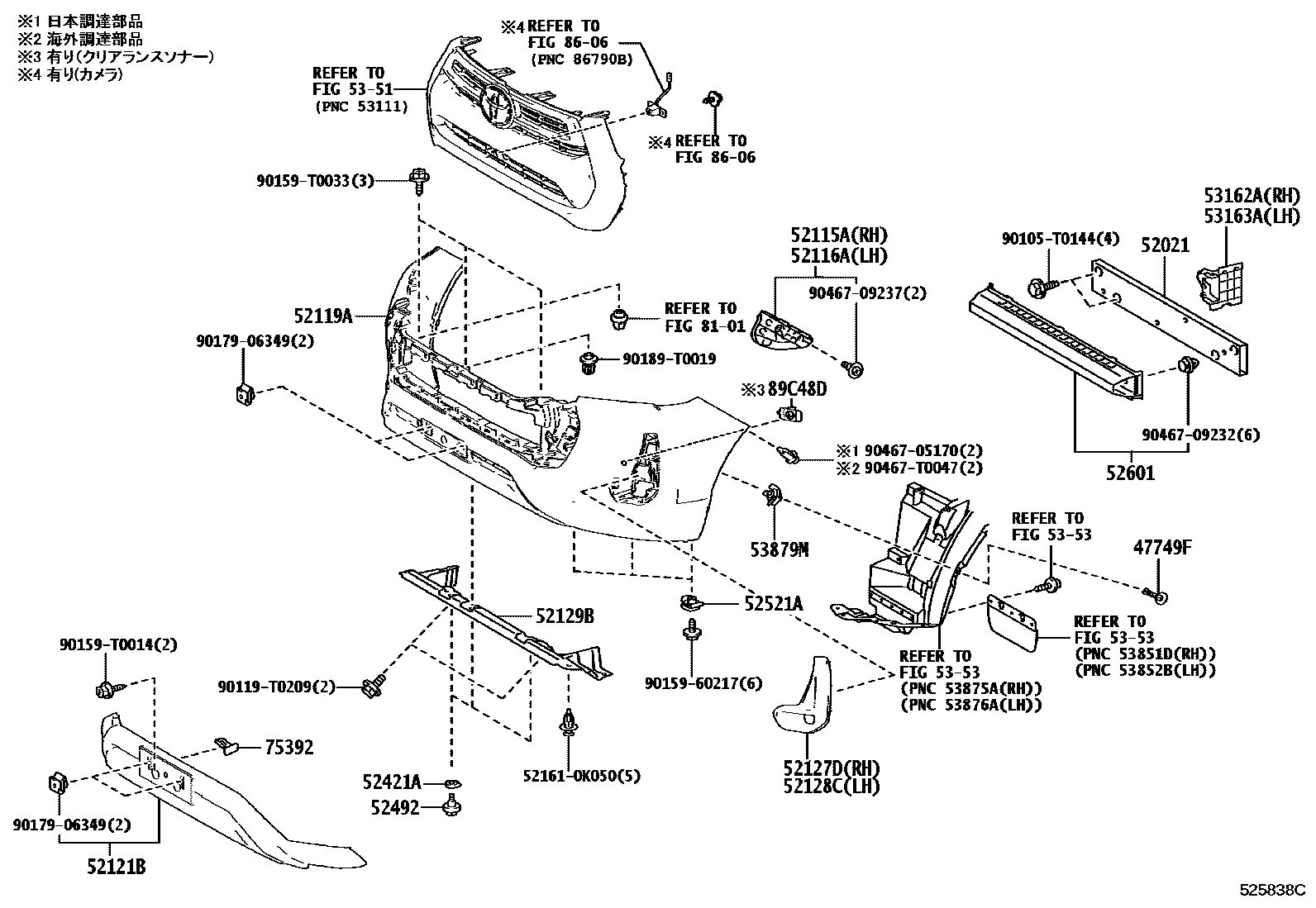

FRONT BUMPER & BUMPER STAY
47749FCLIP, PIN HOLD
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
SILVER ME.,1L0
DK. BLUE MC.,8X8
52121BBRACKET, FRONT LICENCE PLATE MOUNTING
52127DCOVER, FRONT BUMPER HOLE, RH
52128CCOVER, FRONT BUMPER HOLE, LH
52129BCOVER, FRONT BUMPER, LOWER
52421APAD, FRONT BUMPER
52492BOLT, BUMPER PAD, NO.2
52521ACLIP(FOR FRONT BUMPER RETAINER)
52601ABSORBER SUB-ASSY, FRONT BUMPER ENERGY
53162ADEFLECTOR, FRONT BUMPER STONE, RH
53163ADEFLECTOR, FRONT BUMPER STONE, LH
5351RADIATOR GRILLE
5353HOOD & FRONT FENDER
53879MRETAINER, FRONT FENDER LINER
75392RETAINER, OUTSIDE MOULDING
8101HEADLAMP
8606CAMERA & REAR MONITOR DISPLAY
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
521610K050CUSHION, REAR BUMPER GUARD, NO.1
main52161-0K050
90105T0144
main90105-T0144
90119T0209
main90119-T0209
9015960217
main90159-60217
90159T0014
main90159-T0014
90159T0033
main90159-T0033
9017906349
main90179-06349
90189T0019
main90189-T0019
9046705170
main90467-05170
9046709232
main90467-09232
9046709237
main90467-09237
90467T0047
main90467-T0047
34 parts on this diagram · 3 diagrams in section
