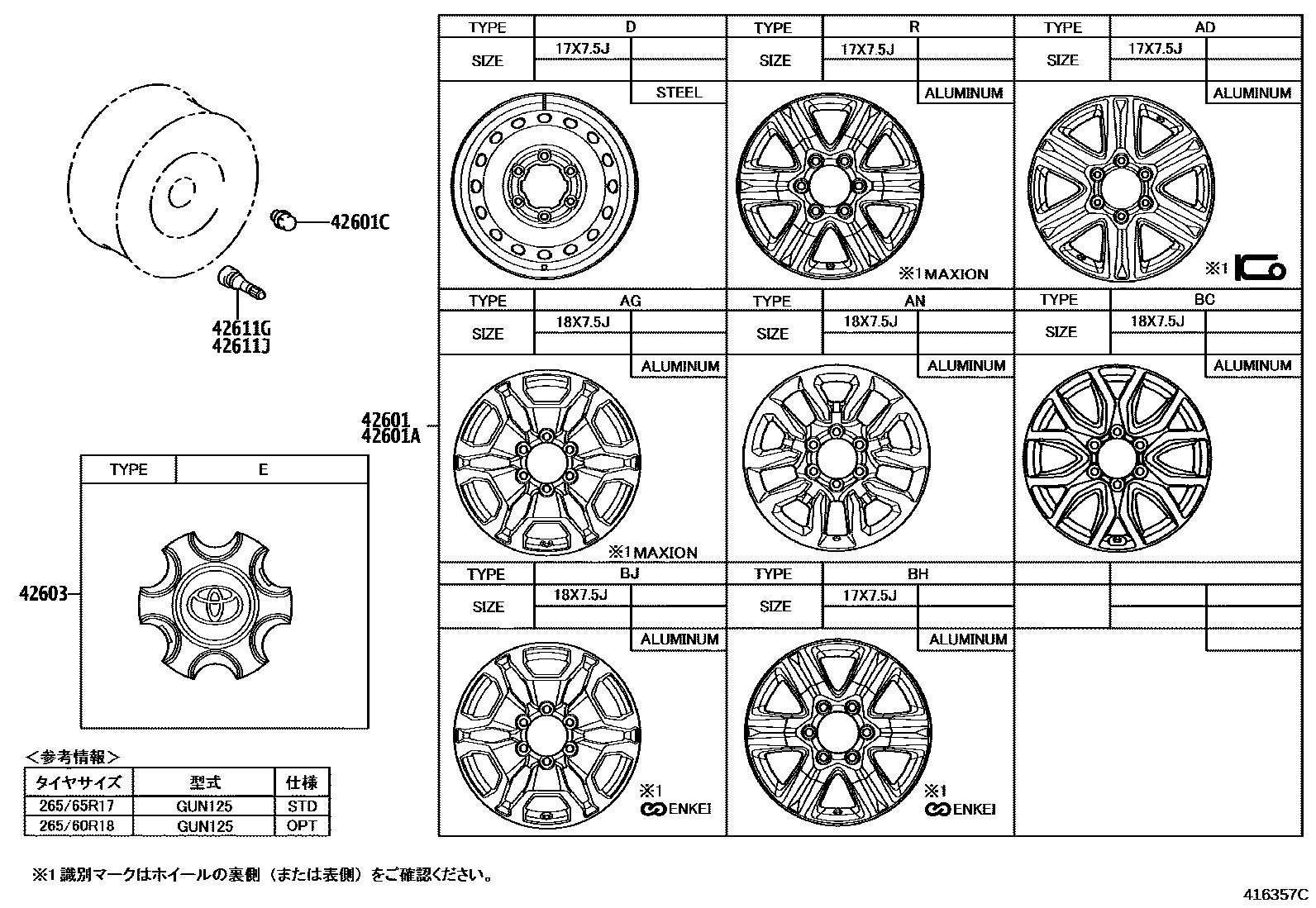

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-0KR30×4supersedes 42611-0KQ00i202308-202407

main42611-0KT10×4supersedes 42611-0KQ00i202308-202407

main42611-YP070×4supersedes 42611-0KQ00i202403-202407

main42611-YP390×4supersedes 42611-0KQ00i202308-202407

42601AWHEEL, DISC (FOR SPARE)

main42611-0KG10supersedes 42611-0KG60i202308-202407

main42611-0KP90supersedes 42611-0KG60i202308-202407

main42611-0KQ00supersedes 42611-0KG60i202308-202407

main42611-0KR30supersedes 42611-0KG60i202308-202407

main42611-0KT10supersedes 42611-0KG60i202308-202407

main42611-YP070supersedes 42611-0KG60i202403-202407

42601CNUT, HUB (FOR AXLE)

main90942-01109×24i202308-202407

main90942-T1005×24i202308-202407

42603ORNAMENT SUB-ASSY, WHEEL HUB

main4260B-0K350×4supersedes 4260B-0K360i202308-202407

42611GVALVE (FOR TUBELESS TIRE)

main90080-94031×4i202308-202407

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-94031i202308-202407

6 parts on this diagram · 1 diagram in section
