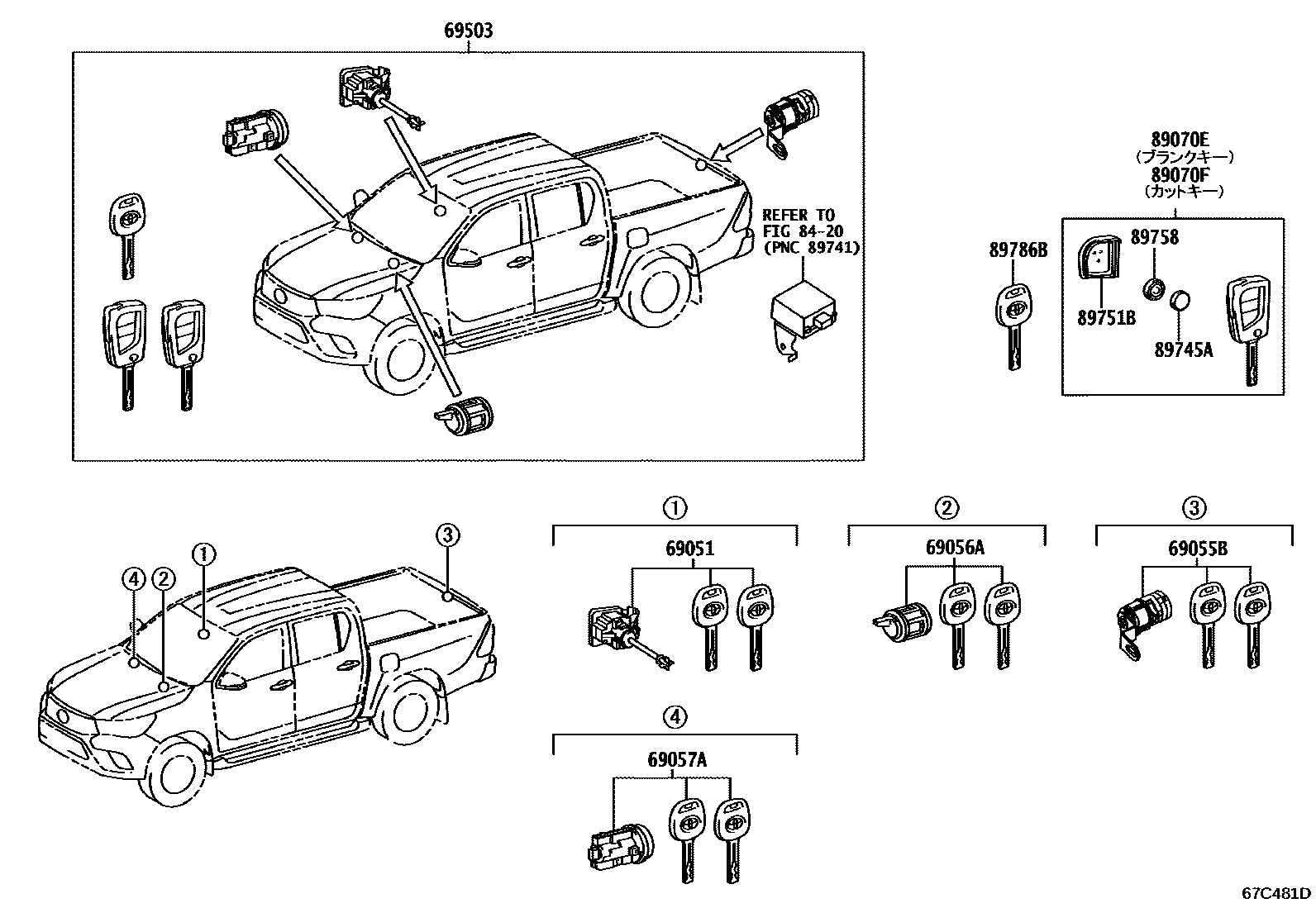

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-0K220iGUN125..X202208-202307

main69051-0K230iGUN125..Z202208-202307

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-0K070iGUN125..X202208-202307

main69055-0K080iGUN125..Z202208-202307

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-0K050iGUN125..X202208-202307

main69056-0K060iGUN125..Z202208-202307

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-0K220iGUN125..X202208-202307

69503CYLINDER SET, LOCK

main69005-0K400iGUN125..Z202208-202307

main89704-0KX70iGUN125..X202208-202307

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-0KG30iGUN125..X202208-202307

89070FTRANSMITTER ASSY, DOOR CONTROL (CUT KEY)

main89070-0KJ00iGUN125..X202208-202307

89745ABATTERY, TRANSMITTER

main89745-0D040iGUN125..X202208-202307

89751BCOVER, TRANSMITTER HOUSING

main89751-02180×2iGUN125..X202208-202307

89758PACKING, DOOR CONTROL TRANSMITTER

main89758-02010×2iGUN125..X202208-202307

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-0K070iGUN125..X202208-202307

main89786-0K150iGUN125..X202208-202307

12 parts on this diagram · 2 diagrams in section
