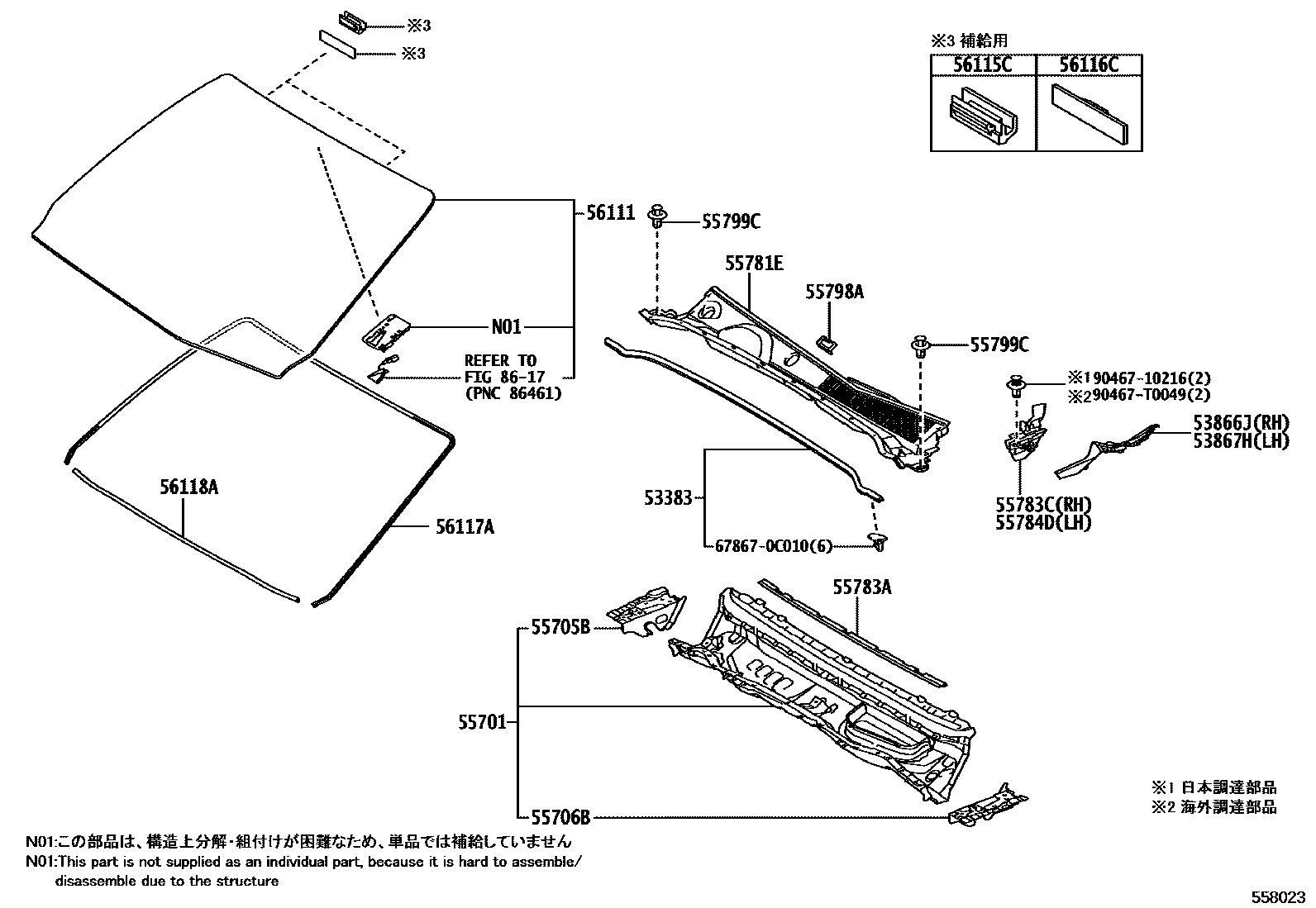

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-0K120iGUN125202208-202307

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0K050iGUN125202208-202307

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0K050iGUN125202208-202307

55701PANEL SUB-ASSY, COWL

main55700-KK050iGUN125202208-202307

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-KK010iGUN125202208-202307

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-KK010iGUN125202208-202307

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0K300iGUN125202208-202307

55783APAD, COWL TOP SILENCER

main55785-0K040iGUN125202208-202307

55783CBRACKET, COWL TOP VENTILATOR LOUVER, RH

main55783-0K100iGUN125202208-202307

55784DBRACKET, COWL TOP VENTILATOR LOUVER, LH

main55784-0K030iGUN125202208-202307

55798ASUPPORT, COWL WATER EXTRACT SEAL

main55798-0K010iGUN125202208-202307

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-07215×2iGUN125202208-202307

main90467-T0050×2iGUN125202208-202307

56111GLASS, WINDSHIELD

main56101-0KM30iGUN125202208-202307

56115CSTOPPER, WINDSHIELD GLASS

main56115-30100iGUN125202208-202307

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iGUN125202208-202307

56117ADAM, WINDOW GLASS ADHESIVE

main56117-KK060iGUN125202208-202307

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56117-KK030iGUN125202208-202307

8617PRE-COLLISION SYSTEM

→ Go to FIG 86-17

678670C010CLIP, DOOR WEATHERSTRIP

main67867-0C010

9046710216

main90467-10216

90467T0049

main90467-T0049

21 parts on this diagram · 1 diagram in section
