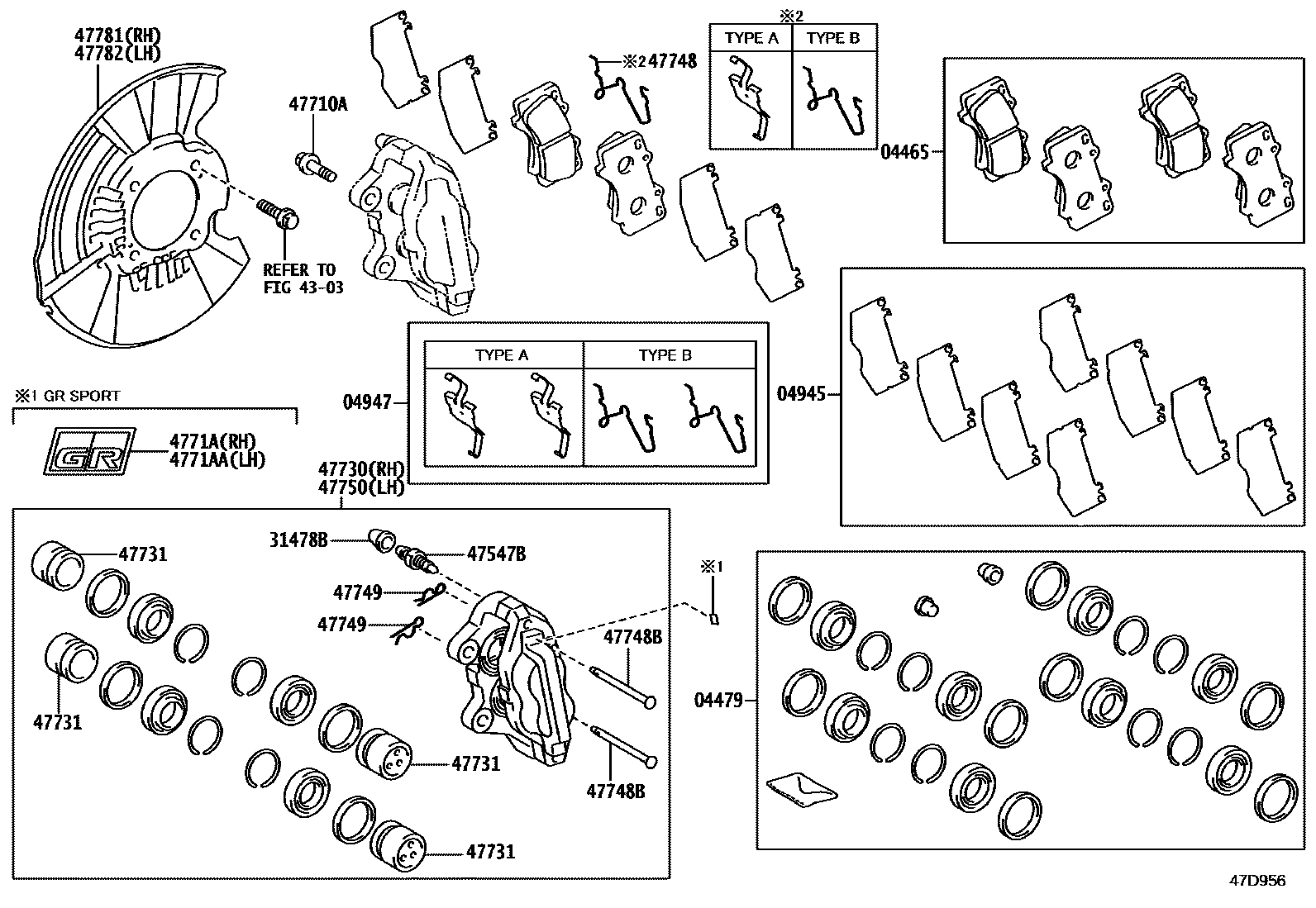

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-0K580iGUN125202208-202307

main04465-0K590iGUN125..Z202208-202301

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0K250iGUN125202208-202307

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0K370iGUN125202208-202307

main04945-0K351iGUN125..Z202208-202301

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0K100iGUN125202208-202307

main04947-0K110iGUN125..Z202208-202301

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0D040×2iGUN125202208-202307

4303FRONT AXLE HUB

→ Go to FIG 43-03

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030×2iGUN125202208-202307

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-T0322×4iGUN125202208-202307

4771AORNAMENT, BRAKE CALIPER MARK, RH

main4771A-0K030iGUN125..Z202208-202301

4771AAORNAMENT, BRAKE CALIPER MARK, LH

main4771A-0K040iGUN125..Z202208-202307

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0K300iGUN125202208-202307

main47730-0K440iGUN125..Z202208-202307

main47730-0K450iGUN125..Z202208-202301

47731PISTON, FRONT DISC BRAKE

main47731-0K300×8iGUN125202208-202307

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-0K300×2iGUN125..Z202208

main47748-0K330×2iGUN125..Z202208-202301

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90016-AE602×4iGUN125202208-202307

47749CLIP, PIN HOLD

main47743-0K300×4iGUN125202208-202307

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0K300iGUN125202208-202307

main47750-0K440iGUN125..Z202208-202307

main47750-0K450iGUN125..Z202208-202301

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0K193iGUN125202208-202307

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0K193iGUN125202208-202307

18 parts on this diagram · 1 diagram in section
