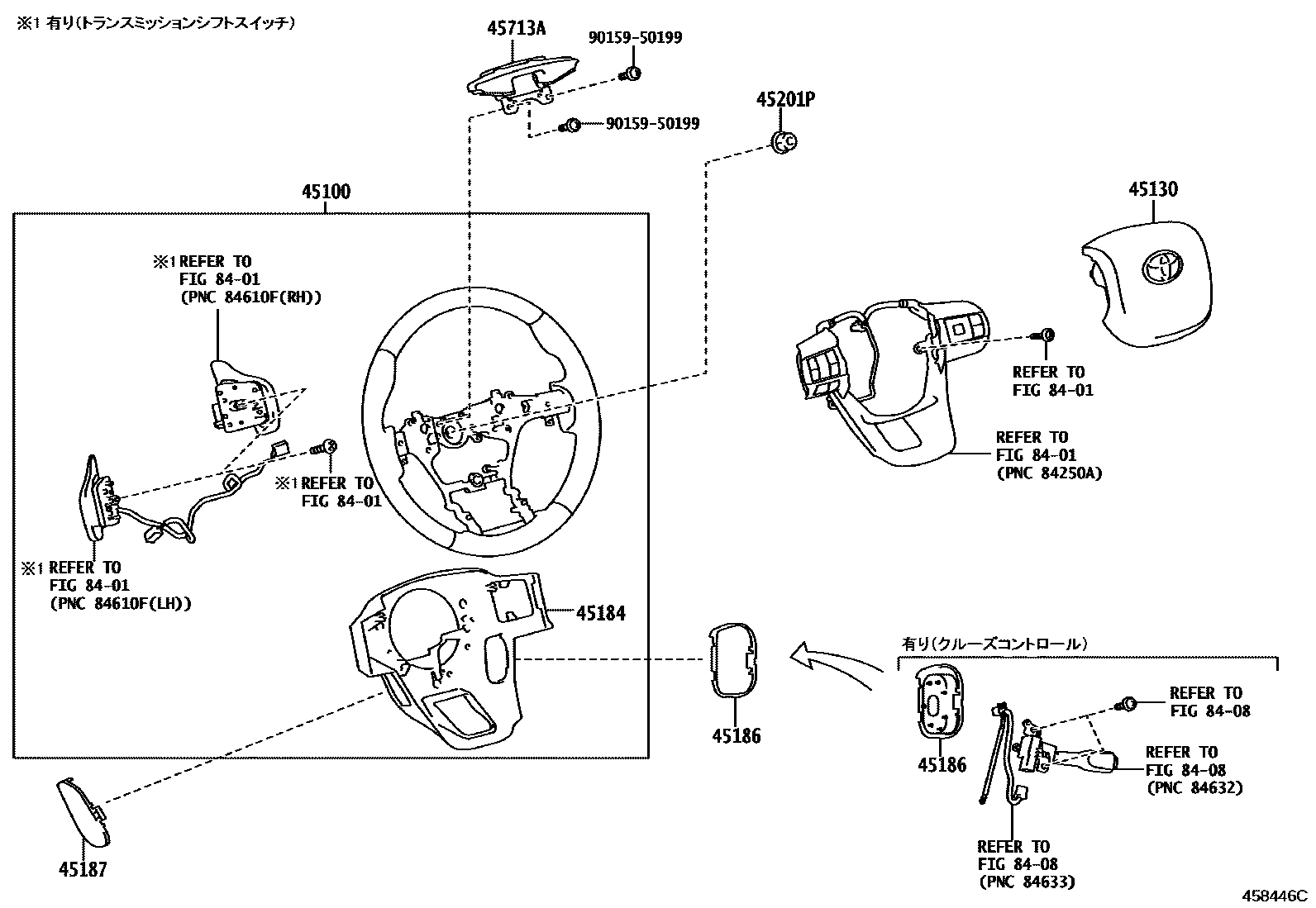

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-0K250-C0iGUN125..X202208-202307

main45100-0K641-C0iGUN125..Z202208-202209

main45100-YP110-C0supersedes 45100-0K641-C0iGUN125..Z202208-202301

main45100-YP110-C1iGUN125..Z202301-202307

45130BUTTON ASSY, HORN

main45130-0K270-C0iGUN125; GUN125..Z202208-202307

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-0K010-C0iGUN125202208-202307

BLACK,TRIM2#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-0K120-C0iGUN125202208-202307

BLACK,TRIM2#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-0K050-C0iGUN125202208-202307

BLACK,TRIM2#

45201PNUT, STEERING WHEEL SET

main90179-12071iGUN125202208-202307

45713ADAMPER, STEERING SHAKE

main45713-0K030iGUN125202208-202307

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9015950199

main90159-50199

10 parts on this diagram · 1 diagram in section
