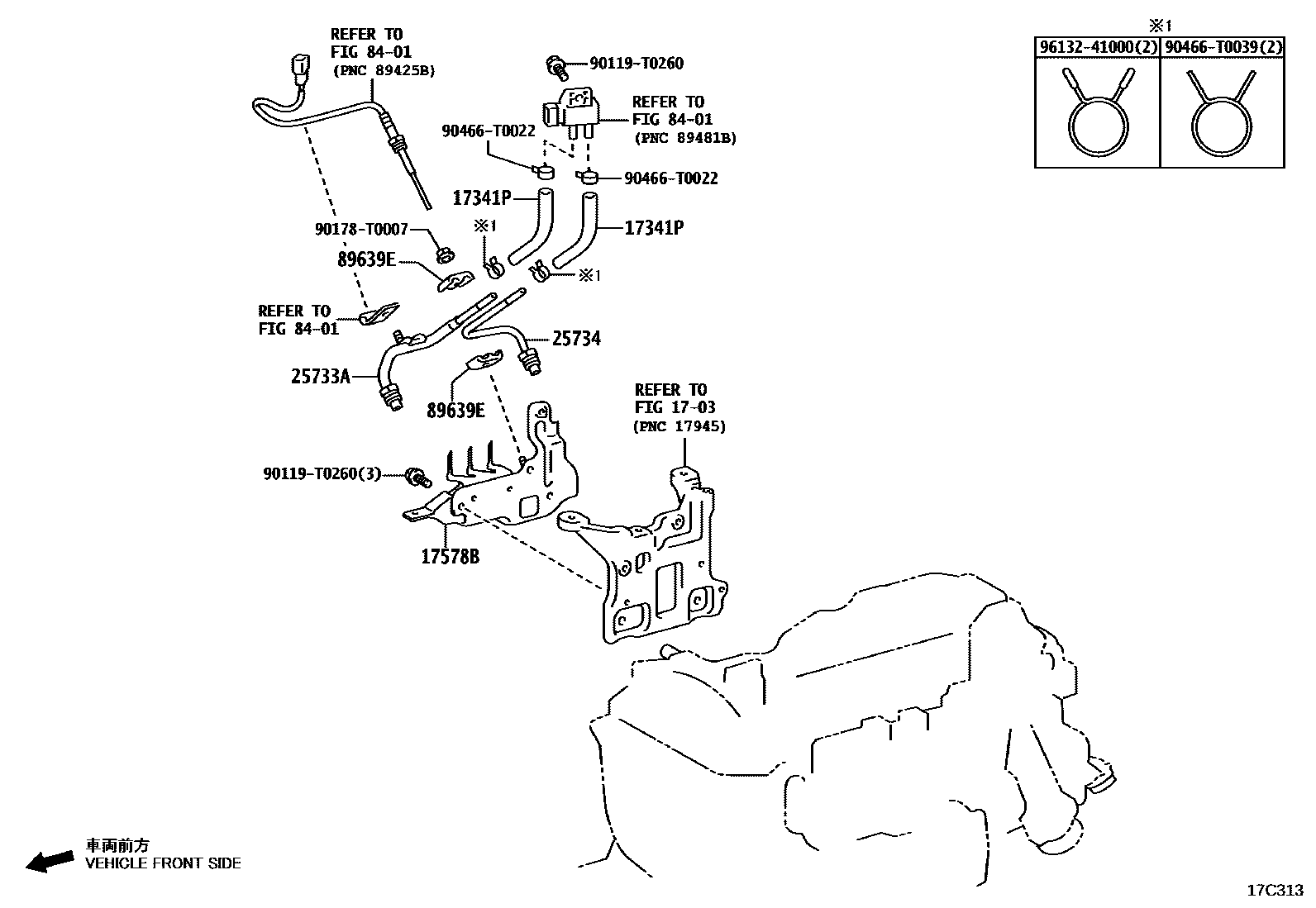

VACUUM PIPING

0001 1 0002 1

17341PHOSE, AIR

main17341-0E010×2i2GDFTV..GUN125202208-202307

17578BCLAMP, PIPE

main17578-0E030i2GDFTV..GUN125202208-202307

25733APIPE, VACUUM, NO.1

main25733-0E010i2GDFTV..GUN125202208-202307

25734PIPE, VACUUM, NO.2

main25734-0E010i2GDFTV..GUN125202208-202307

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89639ECLAMP

main89639-0K010×2iGUN125202208-202307

90119T0260

main90119-T0260

90178T0007

main90178-T0007

90466T0022

main90466-T0022

90466T0039

main90466-T0039

9613241000

main96132-41000

11 parts on this diagram · 2 diagrams in section
